네트워크 전송 지연을 테스트합니다. UDC-RDS 네트워크 지연 시뮬레이터를 사용하면 네트워크 대기 시간을 시뮬레이션하면서 8kbps~3.072Mbps의 데이터 속도로 연결할 수 있습니다. 사용자가 선택할 수 있는 지연은 데이터 및 제어 신호 모두에 대한 것이며 각 방향에서 0밀리초에서 최대 1초 범위입니다.
WAN 지연 시뮬레이터를 사용하면 사용자는 네트워크 지연 시간을 시뮬레이션하는 동시에 안정적인 네트워크 작동을 위해 라우터(소프트웨어 애플리케이션 포함) 및 기타 중요한 DTE 장비를 테스트하고 사전 구성할 수 있습니다.
SPECIFICATION
Application | Interconnection of two Routers or DTE (Terminal)devices located within proximity of each otherwhile simulating network delays times |
Simulation Delay Times | 0, 5 milliseconds(mS) to approximately 1 secondin 5mS increments each directionNote: |
Capacity |
Two (2) Routers or DTEs /DCEs |
Data Rates | 8kbps to 3.072Mbps |
Data Channel Interfaces | Available in V.35, RS-530, RS-422/449, RS-232, X.21or TTL |
Regulatory Approvals | UL 60950-1, 2nd Ed 2010; CAN/CSA 22.2 No.60950-1-07; EN 60950-1:2010; EN 55022:2010; FCCPt 15/ICES-003 Class A |
Dimensions | Height: 1.75 inches (4.44 cm), Width: 9 inches (22.86 cm), Length: 9 inches (22.86 cm) |
Weight | 2 pounds (0.914 Kg) |

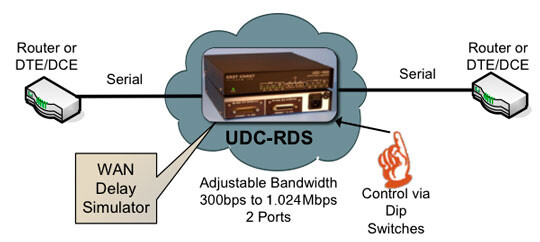

APPLICATION
