V35-530
문의
V.35 to RS-530 Interface Converter
V35-530 Interface Converter는 V.35 모뎀과 RS-530 DTE 장비 간의 신호 레벨 변환을 제공하도록 설계되었습니다.
SPECIFICATION
| Application | V.35 to RS-530 Interface Converter and Signal Level Conversion |
| Capacity | One DCE V.35 and one RS-530 Sync DTE device |
| Interface | V.35 and RS-530 |
| Data Format | Data transparent at all data rates |
| Data Rates | Up to 6Mbps |
| Switches | None |
| V.35 Physical Interface | Male V.35 Connector |
| RS-530 Physical Interface | Female DB-25 Connector |
| Dimensions | Height: 0.50 inches (1.27 cm), Width: 1.75 inches (4.44 cm), Length: 1.75 inches (4.44 cm) |
| Weight | 1/2 pound (0.228Kg), Includes Cable and Shipping Box |

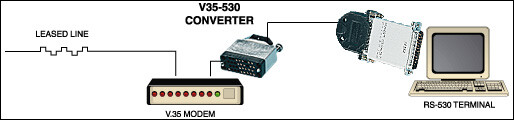

APPLICATION
