16 Port Nx8-MUX는 최대 16개의 서브 채널 포트를 Sync 및 Async 형식으로 1200bps에서 64Kbps까지 지원하도록 설계된 모듈식 TDM 멀티플렉서입니다.

이 장치는 유연성을 극대화하기 위해 8Kbps에서 128Kbps까지 8K 단위로 가변 복합 포트 속도로 제공됩니다.

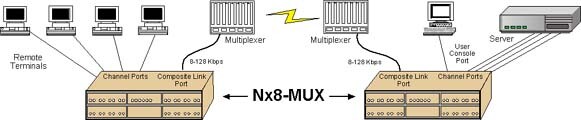

Application Multiple Sync or Async DTE devices time division multiplexed onto one Sync DCE communication link

System Timing: External via Composite Port or Internal Timing for back-to-back connections

Each sub-channel Port capable of accepting external TXC timing for DCE to DCE crossover


Composite Port: One Input

Sub-Channel Ports: Up to sixteen

Data Rates

Composite Port: 8k to 128Kbps in 8k increments

Sub-Channel Ports:

SYNC: (Full Rates) 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 48k, 64k

            (3/4 Rates) 7.2k, 14.4k, 28.8k

ASYNC: (Full Rates) 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k

              (3/4 Rates) 7.2k, 14.4k, 28.8k

Async Support: configurable for 8, 9, 10 and 11 bit data on a per channel basis

Data Format Data transparent at all data rates

4 Port Sub-Channel

I/O Card(s)

Four Ports: DB-25 Females, Four ports RS-232, one port Software Selectable for RS-232, RS-530, V.35, RS-422/449 and X.21 Maximum 4 cards per chassis, 16 I/O's per chassis
Control Leads Passed Options for none or RTS to DCD in Band

Maximum Channel

Composite Rate

128Kbps with composite overhead of 1600 bps. Overhead is constant for all composite port rates.
Cascade Port Via any sub-channel port
Indicators Power, TX Data, RX Data, TX Clock, RX Clock, Sync, Loopback
Composite Port Interface

One Port: DB-25 Male, Software selectable for RS-232, RS-530, *V.35, *RS-422/449 and *X.21

*(Adapter cable required)

Dimensions Height: 8.72 inches (22.10 cm), Width: 17.00 inches (43.18 cm), Length: 9.00 inches (22.86 cm)
Weight                                                                           9 pounds (4.2 Kg)
