V35-232
문의
V.35 to RS-232 Interface Converter
V35-232 Interface Converter는 V.35 DCE(Modem) 장비와 RS-232 DTE(Terminal) 간의 신호 레벨 변환을 제공하도록 설계되었습니다.
SPECIFICATION
| Application | V.35 to RS-232 Interface Converter and Signal Level Conversion |
| Capacity | One DCE V.35 and one RS-232 DTE device |
| Interface | V.35 and RS-232 Male or Female connectors |
| Data Format | Data transparent at all data rates |
| Data Rates | Up to 128Kbps |
| Switches | None |
| RS-232 Physical Interface | Male DB-25 Connector |
| V.35 Physical Interface | Female or Male V.35 Connectors |
| Dimensions | Height: 0.50 inches (1.27 cm), Width: 1.75 inches (4.44 cm), Length: 1.75 inches (4.44 cm) |
| Weight | 1/2 pound (0.228Kg) (Includes Cable and Shipping Box) |

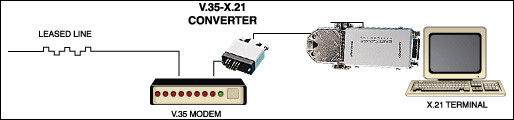

APPLICATION
