SME-530 모뎀 제거기를 사용하면 두 개의 RS-530 DTE 장치가 서로 근접하여 통신할 수 있습니다. SME-530은 DTE 장치 간에 최대 2.048Mbps의 데이터 속도로 데이터를 양방향으로 전송합니다. 모든 클로킹 및 신호 크로스오버는 SME-530 내에서 제공됩니다.
SPECIFICATION
Application | Modem Eliminator for interconnection of two RS-530 DTE (Terminal) devices located within proximity of each other |
Capacity | Two (2) RS-530 DTE's |
Interface | RS-530 using V.11 electrical specification |
Data Rates | Up to 2.048Mbps; Option for T2 (6.312Mbit) |
Channel Interface | Two Female DB-25-P Connectors |
Surge Protection | Main power supply |
Dimensions | Height: 1.75 inches (4.44 cm), Width: 7.90 inches (20.07 cm), Length: 9.00 inches (22.86 cm) |
Weight | 2 pounds (0.914Kg |

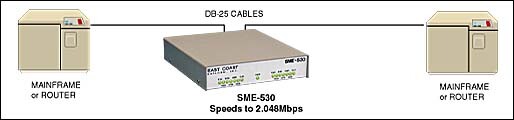

APPLICATION
