SYNC TO IP CONVERTER or HDLC to IP
Sync2IP 또는 Sync to IP Converter는 TCP/IP 네트워크를 통해 시리얼 통신을 전송하는 장치입니다. 전이중 동기 또는 비동기 시리얼 데이터 스트림을 TCP/IP 패킷 스트림으로 변환합니다. HDLC to IP Converter를 위한 이상적인 솔루션입니다.
SPECIFICATION
| Application | Sync to IP Converter allows serial to TCP/IP protocol adapter, to send a full duplex serial data stream over a UDP/IP stream. HDLC to IP supported or any SYNC Protocol |
| Capacity | Up to two Serial Sync or Async Ports converted to one 10/100 Base-T LAN Port |
| Serial Data Interface |
Serial: Async or Sync LAN: 10/100 Base-T, RJ-45 |
| Data Rates |
Serial Data:1200 bps to 64 Kbps for simultaneous two-port operation and up to 128 Kbps for single-port operation LAN: 10/100Mbps |
| Data Format | Data transparent at all data rates |
| Serial Buffer | 2048 bytes |
| Configuration | Browser Interface or Front Panel LCD and push buttons |
| User Configuration | -220VAC @10%, 50/60Hz, 0.16/0.08A, external 110/220 volt select switch, IEC Power |
| Firmware Upgrades | Upgraded via 10/100 LAN Port |
| Indicators |
System: Green or Yellow Peer: Green or Yellow Port 1: Green or Yellow Port 2: Green or Yellow Link: Green Activity: Yellow |
| Dimensions | Height: 1.75 inches (4.44 cm), Width: 17.00 inches (43.18 cm), Length: 9.00inches (22.86 cm) |
| Weight | 4 pounds (1.82 Kg) |

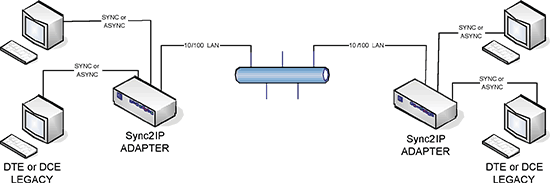

APPLICATION
