DUAL COMPOSITE Nx64 TDM MUX

16 Port Dual Nx64-MUX는 최대 16개의 서브 채널 포트를 Sync 및 Async 형식으로 9.6Kbps부터 768Kbps까지 지원하도록 설계된 모듈식 TDM 멀티플렉서입니다.

이 장치는 유연성을 극대화하기 위해 64Kbps에서 2.048Mbps까지 64K 단위로 가변 포트 속도를 갖는 한 쌍의 복합 포트로 설계되었습니다.







SPECIFICATION



Application Multiple Sync or Async DTE devices time division multiplexed onto one or two Sync DCE communication links
Timing

System Timing: External via Composite Port or Internal Timing for back-to-back connections.

Each sub-channel Port capable of accepting external TXC timing for DCE to DCE crossover

Capacity

Composite Port: One or two Ports

Sub-Channel Ports: Up to sixteen

Data Rates

Composite Ports: 64k to 2.048Mbps in 64k increments

Sub-Channel Ports:

SYNC: (Full Rates) 19.2k, 38.4k, 56k, 64k,128k, 256k, 384k, 512k, 768k

            (3/4 Rates) 7.2k, 14.4k, 28.8k

ASYNC: (Full Rates) 9.6k, 19.2k, 38.4k

              (3/4 Rates) 7.2k, 14.4k, 28.8k

Async Support: configurable for 8, 9, 10 and 11 bit data on a per channel basis

Data Format Data transparent at all data rates

4 Port Sub-Channel

I/O Card(s)

Four Ports: DB-25 Females, Four ports RS-232, one port Software Selectable for RS-232, RS-530, V.35, RS-422/449 and X.21 Maximum 4 cards per chassis, 16 I/O's per chassis
Control Leads Passed Options for none or RTS to DCD in Band

Maximum Channel

Composite Rate

2.048Mbps with composite overhead of 8Kbps.Overhead is constant for all composite port rates.
Cascade Port Via any sub-channel port
Indicators Power, TX Data, RX Data, TX Clock, RX Clock, Sync, Loopback
Dimensions Height: 8.72 inches (22.10 cm), Width: 17.00 inches (43.18 cm), Length: 9.00 inches (22.86 cm)
Weight                                                                 15 pounds (6.8 Kg)

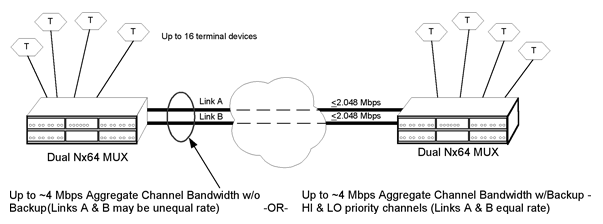

APPLICATION
