WanRaptor
문의
Network Emulator
새로운 WanRaptor™ 네트워크 에뮬레이터는 광역 네트워크의 대역폭, 대기 시간, 손실 및 지터를 에뮬레이션하여 실험실 환경에서 애플리케이션을 검증하는 사용하기 쉽고 경제적인 테스트 솔루션입니다.
WanRaptor™를 구매하면 10/100/1000, 10G, 25G 및 40G 옵션 인터페이스에서 네트워크 에뮬레이션을 지원하는 소프트웨어가 내장된 COTS 하드웨어 시스템을 받게 됩니다.
SPECIFICATION
| Application | An embedded box appliance that will mimic the behavior of a WAN/LAN network, inserted between LAN segments supporting Bridge or Routing functions with network impairments such as bandwidth, delay, loss, re-ordering and random duplication. |
|
Configuration Management Ports – GUI Access |
Two Independent fixed 10/100/1000 Ethernet Ports |
| Bridge or Routing Support |
All emulations support Bridge or Subnet Routing |
| Emulation Interfaces | 10/100/1000 Copper or Fiber, Optional SFP 10G, 25G and 40G SFP+ Inserts |
| Emulation Bandwidth Link Rates | Up to 40GbE bi-directional or split speeds, Kbps, Mbps or Gbps |
| Emulated Latency Settings | Constant: 0 to 10 Seconds, Decimal Format Supported, Also Supports Uniform, Exponential & Inter-Packet |
| Other Emulation Impairments | Packet Loss: Percentage or BER, Burst, Periodic, Gilbert-ElliotJitter: By use of different delay options, Packet Re-Ordering and Random Packet Duplication |
| Link Throughput | Full Line Rate for 10/100/1000 & 10G (64-9000byte Packets)25G and 40G Consult Factory |
| Emulation Statistics | Each link is capable of real-time statistics via GUI |
| VLAN Emulation Support | Create up to ten C-VLAN emulations within a single LAN, each with its own impairments |
| Login Password Protection | Implemented via the user LAN Management Port |
| Software Upgrades | Administered via the LAN User Management Ports |
|
Web Browser Security & Compatibility |
Google Chrome and FireFox - HTTP or HTTPS Support |
| Regulatory Approvals | UL, CSA, CE, CCC, FCC and RoHS |

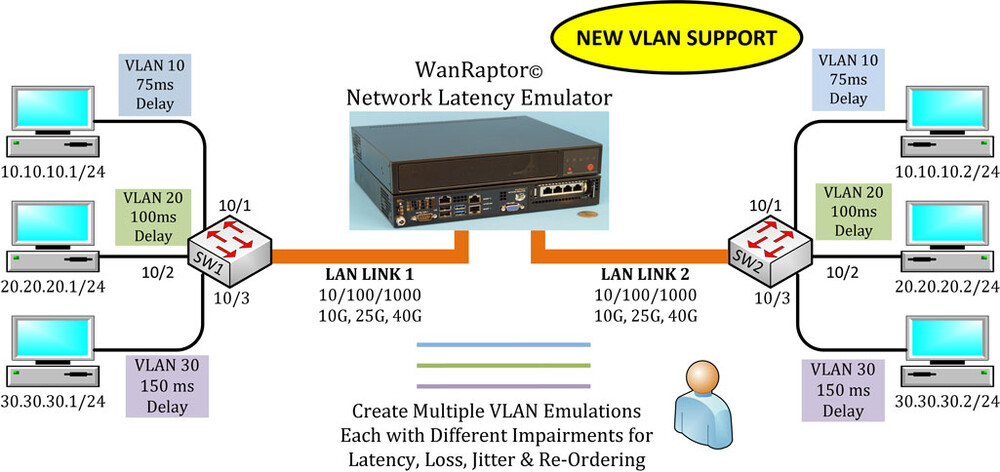

APPLICATION
