RS-232 Line Driver
CE-232는 사용자가 8개의 RS-232 제어 신호를 모두 확장하면서 DCE와 DTE 장치를 최대 5000피트 떨어진 위치에 배치할 수 있는 point-to-point 장치입니다.
SPECIFICATION
| Application | RS-232 signal extension between DCE and DTE devices |
| Capacity | One RS-232 DTE and One RS-232DCE Sync/Async device |
| Interface | RS-232 and RS-423 for box to box connection via RJ-45 |
| Data Format | Data transparent at all data rates |
| Data Rates | Up to 120Kbps |
| Switches | None (All connections are external) |
| RS-232 Physical Interface | Female DB-25 Connectors |
| RS-423 Physical Interface | RJ-45 Connectors |
| Dimensions | Height: 1.75 inches (4.44 cm), Width: 7.90 inches (20.07 cm), Length: 9.00 inches (22.86 cm) |
| Weight | 2 pounds (0.914Kg) |

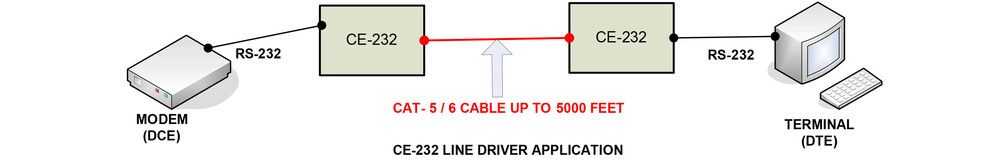

APPLICATION
