232-X21
문의
RS-232 to X.21 Interface Converter
232-X21 Interface Converter는 RS-232 모뎀과 X.21 DTE 장비 간의 신호 레벨 변환을 제공하도록 설계되었습니다.
SPECIFICATION
| Application | RS-232 to X.21 Interface and Signal Level Conversion |
| Capacity | One DCE RS-232 and one X.21 Sync DTE device |
| Interface | RS-232 and X.21 Male or Female connectors |
| Data Format | Data transparent at all data rates |
| Data Rates | Up to 128Kbps |
| Switches | None |
| RS-232 Physical Interface | Male DB-25 Connector |
| X.21 Physical Interface | Female or Male DB-15 Connector |
| Dimensions | Height: 0.50 inches (1.27 cm), Width: 1.75 inches (4.44 cm), Length: 1.75 inches (4.44 cm) |
| Weight | 1/2 pound (0.228Kg), Includes Cable and Shipping Box |

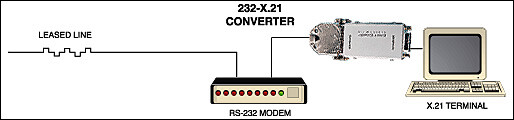

APPLICATION
