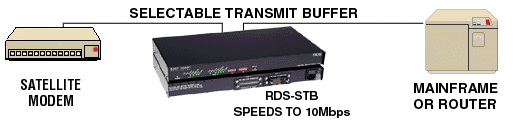

선택 가능한 전송 버퍼(RSD-STB)를 사용하면 최대 10Mbps의 데이터 속도로 DCE-DTE 연결이 가능합니다. 사용자는 거래를 위해 지상파와 위성 네트워크 사이의 네트워크 지연을 균일화할 수 있습니다.
SPECIFICATION
Application | Interconnection of a DCE and DTE device located within proximity of each other while simulating network delays times |
Delay Times | 5 milliseconds(mS) to approximately 1250 mS, in 5 mS incrementsNote: Baud Rate effects total delay times |
Capacity |
One(1) DCE device One(1) DTE device |
Data Rates | Up to 10Mbps |
Data Channel Interfaces | Available in V.35, RS-530, RS-422/449, RS-232 or X.21 |
Dimensions | Height: 1.75 inches (4.44 cm), Width: 7.90 inches (20.07 cm), Length: 9.00 inches (22.86 cm) |
Weight | 2 pounds (0.914Kg) |
APPLICATION
