RA-64/128K
문의
64k ASYNC TO SYNC RATE ADAPTER
RA-64/128K Rate Adapter를 사용하면 저속 비동기 RS-232 DTE 장비가 고속 16k, 64K 또는 128k 동기 통신 링크를 통해 전송할 수 있습니다. RA-64/128k는 양방향 또는 단방향 데이터 전송을 지원합니다.
SPECIFICATION
| Application | Interconnection of a low speed asynchronous terminal or DTE device operating at 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 57.6k or 115.2k to a synchronous 16k, 64k or 128k modem or DCE device |
| Capacity | One terminal(DTE) and one modem(DCE) |
| Data Channel Interfaces |
Async: RS-232 Sync: RS-422, X.21, RS-530 and V.35 |
| Switches | Internal Switches for Baud Rate, Character Length and Crystal setting |
| Data Rates |
Async: 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 57.6k or 115.2k Sync: 16k, 64k or 128k |
| Switches | Provided for async data set-up, stop bit reduction and signal to frame ground |
| Enclosure | Metal: Aluminum |
| Dimensions | Height: 0.50 inches (1.27 cm), Width: 1.75 inches (4.44 cm), Length: 3.90 inches (9.91 cm) |
| Weight | 1/2 pound (0.225 Kg) |

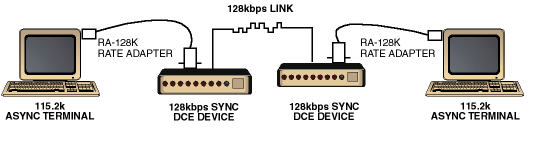

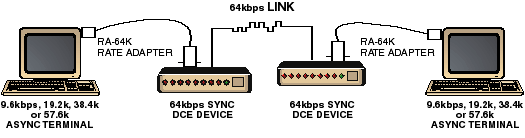

APPLICATION
