A/B 스위치 RS-530을 사용하면 RS-232 또는 ITU-V.24 데이터 포트 간에 안전한 전환이 가능합니다. 이 장치는 공통 포트에서 포트 A 또는 포트 B로의 사용자 데이터 트래픽의 4-Wires 전환을 지원합니다.
모든 스위칭은 수년간 신뢰할 수 있는 서비스를 위해 드라이 컨택 포지티브 래칭 릴레이를 통해 수행됩니다. 로컬에서 정전이 발생하는 경우 A/B 스위치는 기본적으로 Port-A로 설정됩니다.
SPECIFICATION
Application | Allows a user to connect to a Single Common Input Port and Remotely Switch between two Output A and B Ports with local visual port indicators. |
Capacity | Three Ports Common Port A and Port B |
Data Interface | 4-Wire & Ground Interface supports RS-232 or any ITU V.24 compliant balanced interface |
Data Format | Data Transparent at all Data Rates |
Data Rates | Up to 19.2Kbps |
Indicators | Power, Port A and Port B |
Surge Protection | Main power supply and all Data Ports |
EMI Approvals |
FCC 47CFR, Part 15, Subpart B for conducted emissions from a Class A FCC 47CFR, Part 15, Subpart B for radiated emissions from a Class A Safety Approvals UL 60950, UL 62368 Electric Discharge IIEC EN-61000-4-2 |
Dimensions | Height: 1.75 inches (4.445 cm), Width: 5.75 inches (14.605 cm), Length: 5.54 inches (14.072 cm) |
Weight | 1 Pound (0.045Kg) |

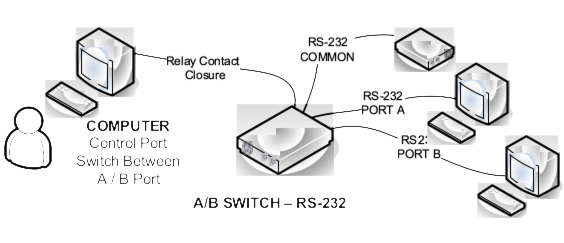

APPLICATION
