ASC-232 Async to Sync Converter는 비동기 터미널 장비가 고속 동기화 모뎀을 통해 전송할 수 있도록 설계되었습니다. 이 장치는 최대 38.4Kbps의 데이터 속도로 자동 전송되며 라인 전원을 사용합니다.
SPECIFICATION
Application | RS-232 async to sync data converter; Conversion, full or half duplex |
Capacity |
One sync RS-232 modem; One async terminal ** Unlimited amount of site drops |
Interface | RS-232 |
Data Format | Data transparent at all data rates; Conforms to CCITT V.14 and V.22, (Async to Sync conversion) |
Data Rates | 1200 to 38.4bps; 900 to 28.8bps |
Switches | Provided for async data set-up, stop bit reduction, RTS hold over and signal to frame ground |
RS-232 Physical Interface |
Male DB-25 Connector to Modem
Female DB-25 Connector for Terminal |
Dimensions | Height: 1.75 inches (4.44 cm), Width: 7.90 inches (20.07 cm), Length: 9.00 inches (22.86 cm) |
Weight | 1 pound (0.457Kg) |

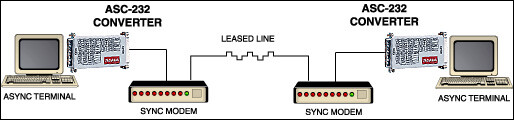

APPLICATION
