TTL Data Broadcast Unit
DBU-TTL Data Broadcast 장치는 수신 전용 데이터 브로드캐스트 애플리케이션에 사용하도록 설계되었습니다. 이 장치는 BNC 커넥터에서 TTL 신호의 8포트 데이터/클럭 배포를 지원합니다.
SPECIFICATION
| Application | Allows TTL input of Data and Clock on 50 Ohm or 75 Ohm BNC Connectors to be broadcast simultaneously to eight output TTL signals of Data and Clock on BNC connectors |
| Capacity | Data & Clock Input Ports and eight output ports each for Data & Clock |
| Interface | 50 Ohm or 75 Ohm BNC Connectors |
| Data Format | Synchronous or Asynchronous DataData Transparent at all Data Rates |
| Data Rates | Up to 20Mbps |
| Indicators | POWER, DATA and CLOCK |
| Surge Protection | Main power supply |
| Front Panel | Indicators....Power, Receive Data and Receive Timing |
| Dimensions |
Height: 1.75 inches (4.44 cm), Width: 17.00 inches (43.18 cm), Length: 9.00 inches (22.86 cm) |
| Weight |
1U Rackmount, 6 Pounds (2.267Kg) |

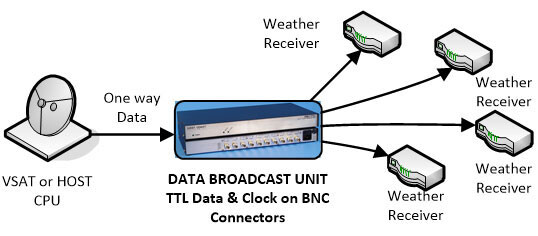

APPLICATION
