PDS-10G or PDS-1G
문의
PDS-1G 또는 PDS-10G는 사용자가 10/100/1000 또는 10GbE 이더넷을 통한 네트워크 손상 테스트를 위해 대역폭, 대기 시간, 패킷 손실, 무작위 복제 및 재정렬을 변경하여 중요한 네트워크 장비를 테스트할 수 있는 소형 저비용 휴대용 지연 시뮬레이터입니다.
SPECIFICATION
| Application |
Network Emulator for interconnection of two 10/100/1000 or 10GbE Ethernet devices simulating bandwidth, latency, packet loss, random re-ordering to create congestion on two independent LAN channels |
| Password Protection | Administered by admin for GUI Login |
| Configuration Ports |
Two Ports, 10/100/1000 Ethernet Ports |
| Data Interface on Delay Ports | 10/100/1000 Copper / Fiber or 10GbE with SFP+ |
| Data Rates |
10/100/1000 or 10GbE |
| Link Rates |
100bps - 1000Mbps in 1bps increments, bi-directional or split speed, bps, Kbps, Mbps or Gbps |
| Link Throughput |
Line Rate for 10/100/1000Line rate for 10G, frames to 512 bytes10G frames for 64/128 at 6.5G & 8.5G ** Under Full Load |
| Latency Types | Constant, Uniform, Exponential, Inter Packet Gap |
| Emulation Settings | Each link is capable of multiple independent delay settings via the software scheduler |
| Emulation Statistics |
Real Time Statistic Screen with counter Reset |

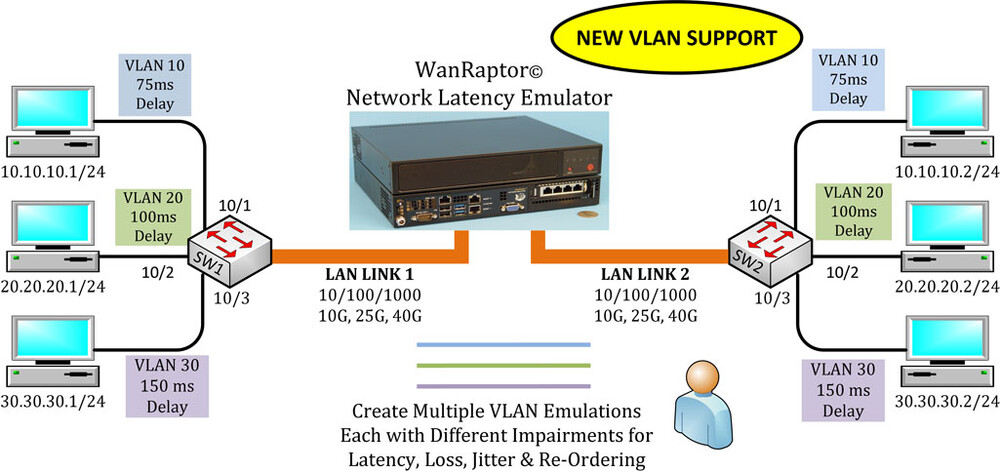

| VLAN Emulation Support | Create up to ten C-VLAN emulations within a single LAN, each with its own impairments |
| Packet Loss |
- burst packet loss, with a configurable per-packet probability for thestart of the burst and a configurable random burst length - periodic packet loss, with a configurable period (measured in packets)and number of consecutive packets dropped for each period - Gilbert-Elliot, with configurable loss probability for good and badstates and configurable per-packet probability of transition fromone state to the other |
|
Packet Re-Ordering & Random Packet Duplication |
Packet Re-Ordering: Settings for Delay & Probability Random Duplication: Randomly duplicate incoming packets, with a configurable per-packetduplication probability |
| Changes On-The-Fly |
Interactive changes without Stopping the Emulation |
| Front Panel Indicators | LAN Ports, Activity, Hard Drive, Power |
| Surge Protection | Main power supply |
| Dimensions | Height: 1.7 inches (43 mm), Width: 10 inches (254mm), Depth: 8.9 inches (226 mm) |
| Software Upgrades |
Administered via the LAN user management Port |
| Regulatory Approvals |
UL, CSA, CE, TUV PSE, FCC and RoHS |
| Web Browser Compatibility | Supports Google Chrome and FireFox - HTTP OR HTTPS |
APPLICATION
