DBU-V11/FB는 밸런스 V.11 인터페이스를 갖추고 X.21, RS-422/449, RS-530, RS-485, V.35 및 V.36 사양을 준수하는 데이터 방송 장치입니다.
이 장치에는 중복 데이터 피드를 활용할 수 있는 통합 폴백 스위치가 있습니다. 레이더 데이터 배포에 이상적인 솔루션입니다.
SPECIFICATION
Application | Multiple Synchronous Broadcasting of Data, Clock and optional control signal to multiple devices with redundant data feeds |
Capacity | Seven broadcast Subchannels per unitOne or two data input portsOne dedicated cascade port |
Data Format | Data transparent at all data rates |
Data Rates | Up to 20Mbps |
Interface | ITU-V.11 compliant, pinned to X.21. Compatible with V.35, RS-422/449, RS-530 and RS-485 |
Subchannel Connection | 15 pin female D-Sub connectors |
Master Port Connection | 15 pin Female D-sub connectors |
Cascade Port Connection | 15 pin Male D-sub connectors |
Front Panel | Indicators....Power, Receive Data, Clock and Indicate, Primary and Backup data sources, AC or DC mains PowerSwitches....Primary or Manual backup, Speaker ON/OFF |
Dimensions | Height: 1.75 inches (4.44 cm), Width: 17.00 inches (43.18 cm), Length: 9.00 inches (22.86 cm) |
Weight | 4.50 pounds (2.1 Kg) |
Approvals | UL 1950, FCC Class A, CE for Europe |

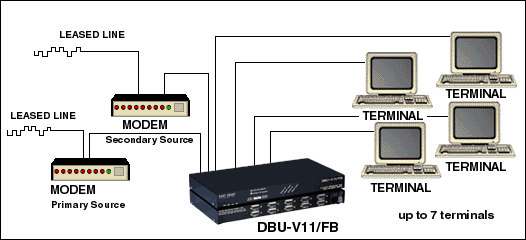

APPLICATION
