CrystalView DVI Quad CATx
문의
Multi-head CATx/Fiber Extender
• DVI + options
• DVI + options
FEATURES
- CATX를 통해 1920x1200의 압축 DVI 비디오
- CATx에서 최대 460ft (140m)
- 원격 또는 로컬 액세스를 위한 로컬 포트
- USB 또는 PS/2 키보드 및 마우스 또는 비디오로만 사용 가능
- 직렬 및 오디오 옵션 (스테레오 스피커 및 마이크)
- 투명한 USB 2.0 옵션

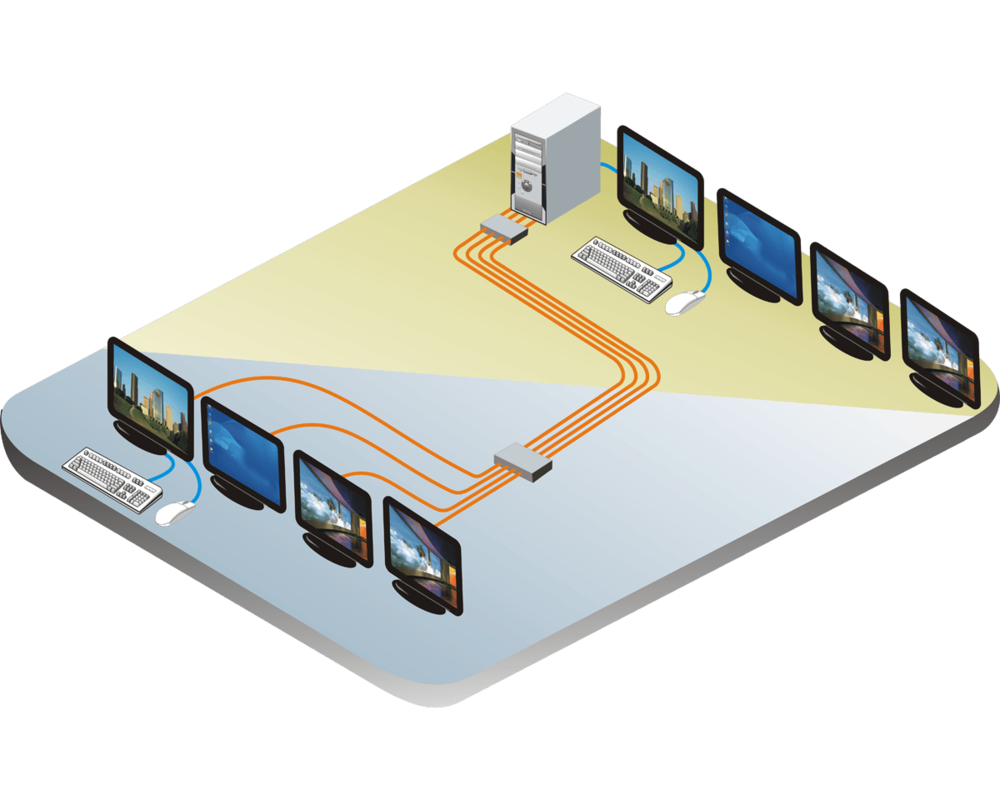

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| Kits (transmitter, receiver, and power supply) | |
| 1 channel video - CATx | |
| CRK-2DTX0D1D/R | 1x DVI Only |
| CRK-2DTXUD1D/R | 1x DVI + USB-HID |
| CRK-2DTXTD1D/R | 1x DVI + USB-HID + USB2 |
| CRK-2DTXTD1DP/R | 1x DVI + USB-HID + PS2 + USB2 |
| CRK-2DTXPD1D/R | 1x DVI + PS2 |
| CRK-2DTX0D1D/AUD/R | 1x DVI + Audio + Serial |
| CRK-2DTXUD1D/AUD/R | 1x DVI + USB-HID + Audio + Serial |
| CRK-2DTXTD1D/AUD/R | 1x DVI + USB-HID + USB2 + Audio + Serial |
| CRK-2DTXTD1DP/AUD/R | 1x DVI + USB-HID + PS2 + USB2 + Audio + Serial |
| CRK-2DTXPD1D/AUD/R | 1x DVI + PS2 + Audio + Serial |
| 2 channel video - CATx | |
| CRK-2DTX0D2D/R | 2x DVI Only |
| CRK-2DTXUD2D/R | 2x DVI + USB-HID |
| CRK-2DTXTD2D/R | 2x DVI + USB-HID + USB2 |
| CRK-2DTXTD2DP/R | 2x DVI + USB-HID + PS2 + USB2 |
| CRK-2DTXPD2D/R | 2x DVI + PS2 |
| CRK-2DTX0D2D/AUD/R | 2x DVI + Audio + Serial |
| CRK-2DTXUD2D/AUD/R | 2x DVI + USB-HID + Audio + Serial |
| CRK-2DTXTD2D/AUD/R | 2x DVI + USB-HID + USB2 + Audio + Serial |
| CRK-2DTXTD2DP/AUD/R | 2x DVI + USB-HID + PS2 + USB2 + Audio + Serial |
| CRK-2DTXPD2D/AUD/R | 2x DVI + PS2 + Audio + Serial |
| 3 channel video - CATx | |
| CRK-2DTX0D3D/R | 3x DVI Only |
| CRK-2DTXUD3D/R | 3x DVI + USB-HID |
| CRK-2DTXTD3D/R | 3x DVI + USB-HID + USB2 |
| CRK-2DTXTD3DP/R | 3x DVI + USB-HID + PS2 + USB2 |
| CRK-2DTXPD3D/R | 3x DVI + PS2 |
| CRK-2DTX0D3D/AUD/R | 3x DVI + Audio + Serial |
| CRK-2DTXUD3D/AUD/R | 3x DVI + USB-HID + Audio + Serial |
| CRK-2DTXTD3D/AUD/R | 3x DVI + USB-HID + USB2 + Audio + Serial |
| CRK-2DTXTD3DP/AUD/R | 3x DVI + USB-HID + PS2 + USB2 + Audio + Serial |
| CRK-2DTXPD3D/AUD//R | 3x DVI + PS2 + Audio + Serial |
| Options (options fitted on TX and RX units) | |
| /A1 | Uni-Directional Audio |
| /A2 | Bi-Directional Audio |
| /S | Serial RS232 |
| /AS | Bi-Directional Audio + Serial |
| 4 channel video - CATx | |
| CRK-2DTX0D4D/R | 4x DVI Only |
| CRK-2DTXUD4D/R | 4x DVI + USB-HID |
| CRK-2DTXTD4D/R | 4x DVI + USB-HID + USB2 |
| CRK-2DTXTD4DP/R | 4x DVI + USB-HID + PS2 + USB2 |
| CRK-2DTXPD4D/R | 4x DVI + PS2 |
| CRK-2DTX0D4D/AUD/R | 4x DVI + Audio + Serial |
| CRK-2DTXUD4D/AUD/R | 4x DVI + USB-HID + Audio + Serial |
| CRK-2DTXTD4D/AUD/R | 4x DVI + USB-HID + USB2 + Audio + Serial |
| CRK-2DTXTD4DP/AUD/R | 4x DVI + USB-HID + PS2 + USB2 + Audio + Serial |
| CRK-2DTXPD4D/AUD/R | 4x DVI + PS2 + Audio + Serial |
| Cables | |
| CAB-DDPMDD66M006 | DVI-D w/PS2 to DVI-D & 2 MD6M, 6' |
| CAB-MD8D9A006 | CPU Audio and Serial to mini-dn8, 6' |
| CAB-MD6M2MD6F | Keyboard/Mouse PS/2 “Y" cable |
| CAB-DVIDMMnnn | DVI-D mm cable |
| CAB-USBABnnn | USB type A/B cable |
| CAB-SPMMnnn | Audio 3.5mm cable |
| CAB-D9MFnnn | RS232 DB9MF serial cable |
| nnn=length in feet | |
| Rackmount brackets | |
| RM-UM19 | 19 inch Rackmount Bracket for “Mini" chassis units |
| RM-UB19 | 19 inch Rackmount Bracket for “B" chassis units |
| RM-UD-1U | Under desk Rackmount plate for "Mini" chassis units |
| RM-BR3DV4/19 | 19 inch, 1U, rackmount shelf |
