CrystalView Pro Fiber Rack

문의

Fiber Extender Chassis
• DVI • VGA • USB • PS2

FEATURES

10개의 카드 섀시에 최대 10개의 송신기 또는 수신기를 장착 가능
최대 1600x1200 해상도 (1920x1200 옵션)에서 DVI 및 VGA 비디오 지원
멀티모드 OM3 광섬유 케이블을 통해 최대 1,640ft (500m) 연장
싱글모드 광섬유 케이블을 통해 최대 33,000ft (10Km) 연장
PS/2 또는 USB 키보드/마우스용 별도 모델
선택적 오디오 및 직렬 확장

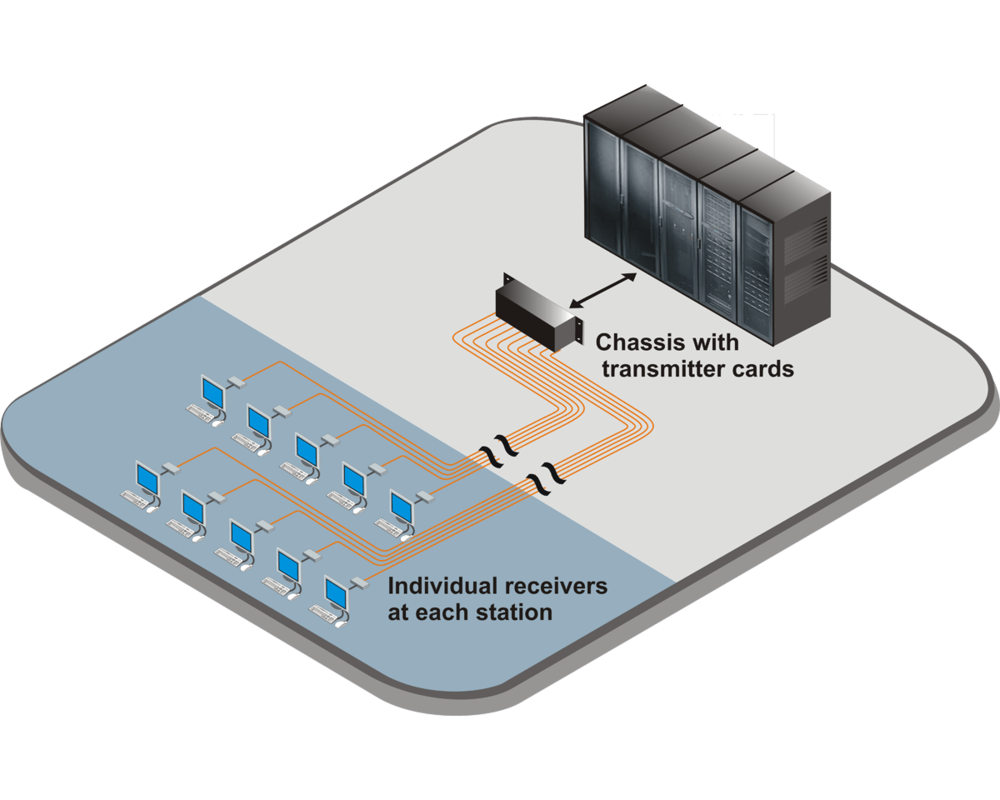

APPLICATION

PART NUMBERS

Product Part Number	Description
Chassis
CRV-CH10/DVI	CrystalView Pro Fiber Rack chassis, empty, 10 slot
CRV-CH10/DVI-NP	CrystalView Pro Fiber Rack chassis, empty, 10 slot - no power
CRV-CH08/DVI/DP	CrystalView Pro Fiber Rack chassis, empty, 8 slot - dual power
CRV-CP	Blanking cover plate for empty chassis slots
Populated chassis
CRV-DLDFMPDVI-RKnnL	Chassis with 10 transmitters, dual access DVI/VGA-PS/2 cards, multi-mode
CRV-DLDFSPDVI-RKnnL	Chassis with 10 transmitters, dual access DVI/VGA-PS/2 cards, single-mode
CRV-SLDFMUDVIB-RKnnL	Chassis with 10 transmitters, DVI/VGA-USB cards, multi-mode
CRV-SLDFSUDVIB-RKnnL	Chassis with 10 transmitters, DVI/VGA-USB cards, single-mode
CRV-SRDFMPDVI-RK10R	Chassis with 10 receivers, DVI/VGA-PS/2 cards, multi-mode
CRV-SRDFSPDVI-RK10R	Chassis with 10 receivers, DVI/VGA-PS/2 cards, single-mode
CRV-SRDFMUDVIB-RK10R	Chassis with 10 receivers, DVI/VGA-USB cards, multi-mode
CRV-SRDFSUDVIB-RK10R	Chassis with 10 receivers, DVI/VGA-USB cards, single-mode
nn=number of cards to populate
Populated chassis options
/DP	Dual power option, takes 2 slots of 10-slot chassis
Transmitter Cards for Chassis
CRV-DLDFMPDVI-IRK	Transmitter card, DVI/VGA-PS/2, dual access, multi-mode
CRV-DLDFSPDVI-IRK	Transmitter card, DVI/VGA-PS/2, dual access, single-mode
CRV-SLDFMUDVIB-IRK	Transmitter card, DVI/VGA-USB, multi-mode
CRV-SLDFSUDVIB-IRK	Transmitter card, DVI/VGA-USB, single-mode
CRV-DLDFMPDVI/SF/AU-IRK	Transmitter card, video/audio, dual access, single fiber, multi-mode
CRV-SLDFMPDVI/SF/AU-IRK	Transmitter card, video/audio, single fiber, multi-mode
Receiver Cards for Chassis
CRV-SRDFMPDVI-IRK	Receiver card, DVI/VGA-PS/2, multi-mode
CRV-SRDFSPDVI-IRK	Receiver card, DVI/VGA-PS/2, single-mode
CRV-SRDFMUDVIB-IRK	Receiver card, DVI/VGA-USB, multi-mode
CRV-SRDFSUDVIB-IRK	Receiver card, DVI/VGA-USB, single-mode
CRV-SRDFMPDVI/SF/AU-IRK	Receiver card, video/audio, single fiber, multi-mode
Standalone Transmitter Units
CRV-DLDFMPDVI	Transmitter unit, DVI/VGA-PS/2, dual access multi-mode
CRV-DLDFSPDVI	Transmitter unit, DVI/VGA-PS/2, dual access single-mode
CRV-SLDFMUDVIB	Transmitter unit, DVI/VGA-USB,multi-mode
CRV-SLDFSUDVIB	Transmitter unit, DVI/VGA-USB, single-mode
CRV-DLDFMPDVI/SF/AU	Transmitter unit, video/audio dual access, single fiber, multi-mode
CRV-SLDFMPDVI/SF/AU	Transmitter unit, video/audio, single fiber, multi-mode
Standalone Receiver Units
CRV-SRDFMPDVI	Receiver unit, DVI/VGA-PS/2, multi-mode
CRV-SRDFSPDVI	Receiver unit, DVI/VGA-PS/2, single-mode
CRV-SRDFMUDVIB	Receiver unit, DVI/VGA-USB, multi-mode
CRV-SRDFSUDVIB	Receiver unit, DVI/VGA-USB, single-mode
CRV-SRDFMPDVI/SF/AUD	Receiver unit, video/audio, single fiber, multi-mode
Options
-ERK	Externally powered card option for chassis, with power supply
/2.5	2.5 Gbit Module, LC connectors
/AUD	Audio and serial option per card
Cables
CAB-CXDVII66MMnnn	UltraCable Hi-Res, PC to switch, DVI-PS/2 to DVI-PS/2 (M-M)
CAB-CXV66MMnnn	UltraCable Hi-Res, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXVMMnnn	UltraCable Hi-Res, PC to switch, VGA to VGA (M-M)
CAB-CXDVIIMMnnn	UltraCable Hi-Res, PC to switch, DVI to DVI (M-M)
CAB-D9MFnnn	Cable, serial, DB9M to DB9F
CAB-SPMMnnn	Cable, stereo audio, mini-Phone M-M (3.5mm)
CAB-09SMDFSCnnn	Fiber cable, single-mode duplex fiber, 09/125µ, SC connector
CAB-50MMDFSCnnn	Fiber cable, multi-mode duplex fiber 50/125µ, SC connector
CAB-09SMDFLCnnn	Fiber cable, single-mode duplex fiber, 09/125µ, LC connector
CAB-50MMDFLCnnn	Fiber cable, multi-mode duplex fiber 50/125µ, LC connector
nnn=length in feet
Rackmount brackets
RM-UM16/xx	Rack mount kit 4U chassis, (xx = 19", 23",24", or 42")
