ViewLink CATx
문의
Miniature CATx Extender
• VGA • USB • PS2+Skew • 1000'
• VGA • USB • PS2+Skew • 1000'
FEATURES
- 300ft (90m)에서 최대 1920x1200, 1,000ft (300m)에서 1024x768의 ViewLink 비디오 해상도
- 터치스크린 기능(옵션)이 있는 USB 또는 PS/2 (비디오만 가능)
- 자동 이퀄라이제이션으로 모든 유형의 CATx 케이블에서 선명한 비디오 제공
- 선택적 자동 비디오 왜곡 조정은 케이블의 서로 다른 쌍 길이에 맞게 조정

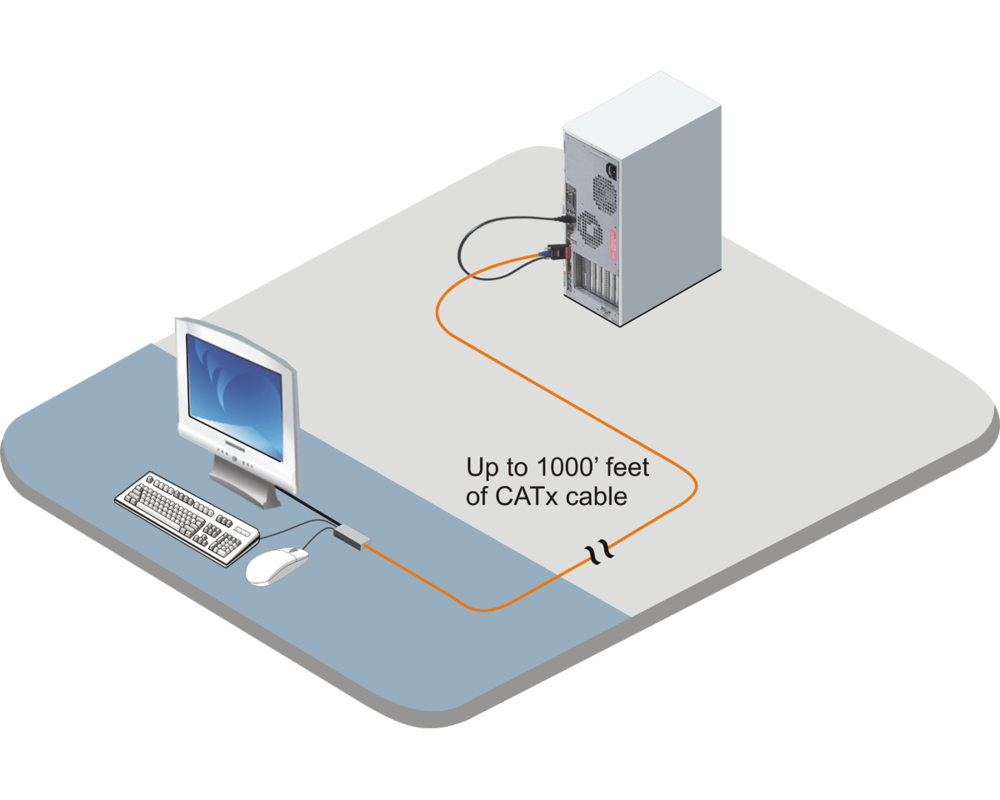

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| Kits (transmitter, receiver, and power supply) | |
| VLK-TMVPRAVP | Single Access PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVURAVU | Single Access USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVBRAVP | Single Access PS/2 & USB to PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVBRAVU | Single Access PS/2 & USB to USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVDRAVU | Single Access DB25 to USB, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVURAVD | Single Access USB to DB25, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVDRAVP | Single Access DB25 to PS/2, VGA KVM Extender Kit, Auto EQ |
| VLK-TMVPRAVD | Single Access PS/2 to DB25, VGA KVM Extender Kit, Auto EQ |
| Video Only & Touchscreen Kits | |
| VLK-TMV0RAV0-U | Video only w/USB pigtail to draw power from CPU's USB port |
| VLK-TMV0RAV0-P | Video only w/PS/2 pigtail to draw power from PS2 Keyboard port |
| VLK-TMV0RAV0/B1.3 | Video only w/barrel jack and transformer for power |
| VLK-TMVURAVU-T | Single Access USB, VGA KVM Extender Kit, Auto EQ, Touchscreen |
| Options | |
| -W | Automatic skew adjustment option |
