CrystalView CAT5 Rack
문의
VGA CATx Extenders
• Rack mount • 1000ft
• Rack mount • 1000ft
FEATURES
- 6개 또는 12개의 CrystalView CATx 송신기 모듈이 있는 랙 장착형 섀시
- 해상도 요구 사항을 충족시키기 위해 다양한 수신기 중에서 선택
- 650ft (200m)에서 최대 1600x1200, 1,000ft (300m)에서 1280x1024의 비디오 해상도
- PS/2 또는 USB 키보드 및 마우스
- 확장의 양쪽에서 컴퓨터에 이중 액세스 할 수 있는 옵션 로컬 포트
- 옵션 오디오 (스테레오 스피커 및 모노 마이크) 및 직렬 확장
- 멀티 헤드 비디오 옵션

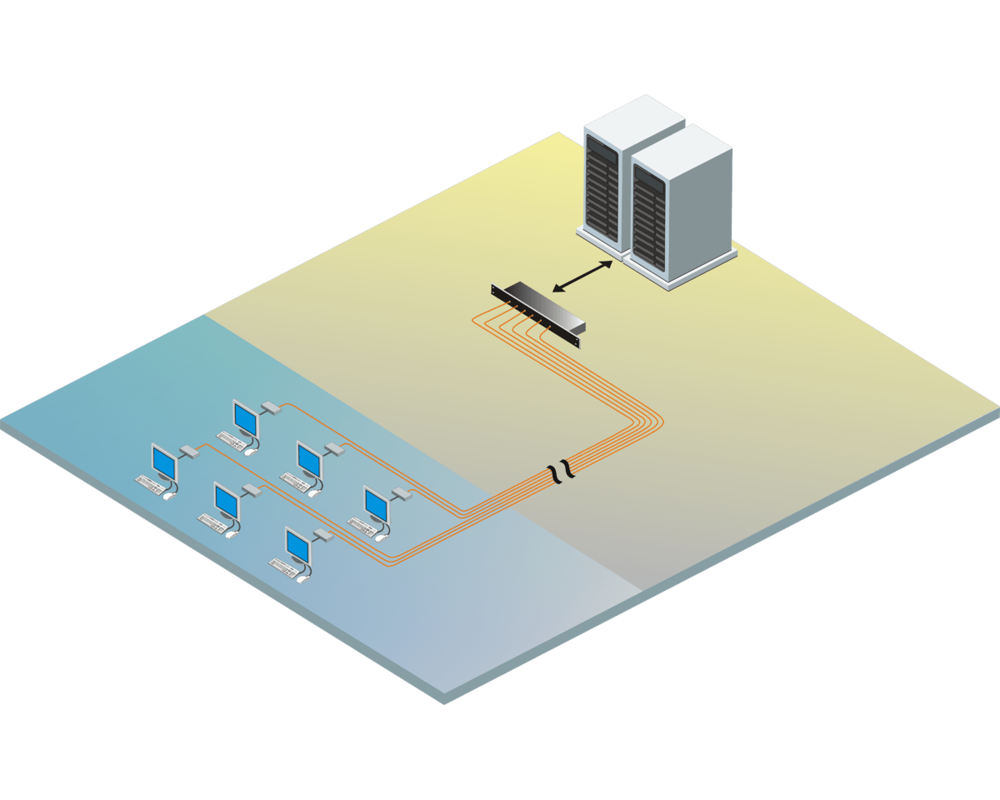

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| CrystalView Rack transmitter 19" rackmount chassis | |
| CRV-6SLP | CrystalView Rack, 6-Single Access Transmitters, 1U rack mount chassis |
| CRV-6SLP/AUD | CrystalView Rack, 6-Single Access Transmitters, 1U rack mount chassis , Audio/Serial |
| CRV-6DLP | CrystalView Rack, 6-Dual Access Transmitters, 1U rack mount chassis |
| CRV-6DLP/AUD | CrystalView Rack, 6-Dual Access Transmitters, 2U rack mount chassis , Audio/Serial |
| CRV-12SLP | CrystalView Rack, 12-Single Access Transmitters, 1U rack mount chassis |
| CRV-12SLP/AUD | CrystalView Rack, 12-Single Access Transmitters, 2U rack mount chassis , Audio/Serial |
| CRV-12DLP | CrystalView Rack, 12-Dual Access Transmitters, rack mount chassis |
| CrystalView Mini remote units | |
| CRV-MR | CrystalView Mini, Remote unit |
| CRV-MR/AUD | CrystalView Mini, Remote unit, audio and serial |
| CRV-6SRP | CrystalView Rack, 6-Receiver, 1U rack mount chassis |
| CRV-6SRP/AUD | CrystalView Rack, 6-Receiver, 1U rack mount chassis, audio and serial |
| CrystalView CAT5 remote units | |
| CRV-R | CrystalView, Remote unit |
| CRV-R/AUD | CrystalView, Remote unit, audio and serial |
| CRV-R-U2 | CrystalView, Remote unit, USB keyboard and mouse |
| CRV-R-U2/AUD | CrystalView, Remote unit, USB keyboard and mouse, audio and serial |
| CrystalView Plus remote units | |
| CRV-R1V | CrystalView Plus, Remote unit |
| CRV-R1V/AUD | CrystalView Plus, Remote unit, audio and serial |
| CRV-RU1V | CrystalView Plus, Remote unit, USB keyboard and mouse |
| CRV-RU1V/AUD | CrystalView Plus, Remote unit, USB keyboard and mouse, audio and serial |
| CrystalView Plus remote units, dual-head video | |
| CRV-R2V | CrystalView Plus, Remote unit, dual-head video |
| CRV-R2V/AUD | CrystalView Plus, Remote unit, dual-head video, audio and serial |
| CRV-RU2V | CrystalView Plus, Remote unit, dual-head video, USB keyboard and mouse |
| CRV-RU2V/AUD | CrystalView Plus, Remote unit, dual-head video, USB keyboard and mouse, audio and serial |
| CrystalView Plus remote units, quad-head video | |
| CRV-R4V | CrystalView Plus, Remote unit, quad-head video |
| CRV-R4V/AUD | CrystalView Plus, Remote unit, quad-head video, audio and serial |
| All models come with PS/2 keyboard and mouse except where USB is listed | |
| Cables for CrystalView Rack | |
| CAB-CXUSBCnnn | UltraCable, PC to Switch, DB25M to VGA-USB Keyboard + Mouse |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CXVMMnnn | UltraCable Hi-Res, PC to Switch, VGA to VGA |
| CAB-D9MFnnn | Cable, Serial, DB9M to DB9F |
| CAB-SPMMnnn | Cable, Stereo Audio, Mini-Phone M-M (3.5mm) |
| CAB-08UTPnnn | Cable, UTP CAT5, RJ45MM |
