CrystalView Plus
문의
CATx Extender
• VGA • PS2 • Audio • Serial+Skew • 1000'
• VGA • PS2 • Audio • Serial+Skew • 1000'
FEATURES
- 650ft (200m)에서 최대 1600x1200, 1,000ft (300m)에서 1280x1024의 비디오 해상도
- 이퀄라이제이션 및 스큐의 비디오 조정은 키보드 명령을 통해 수행
- PS/2 키보드 및 마우스 에뮬레이션으로 원활한 작동 보장
- 선택적 스테레오 스피커, 마이크 및 직렬 확장
- 듀얼 헤드 비디오 기능 옵션

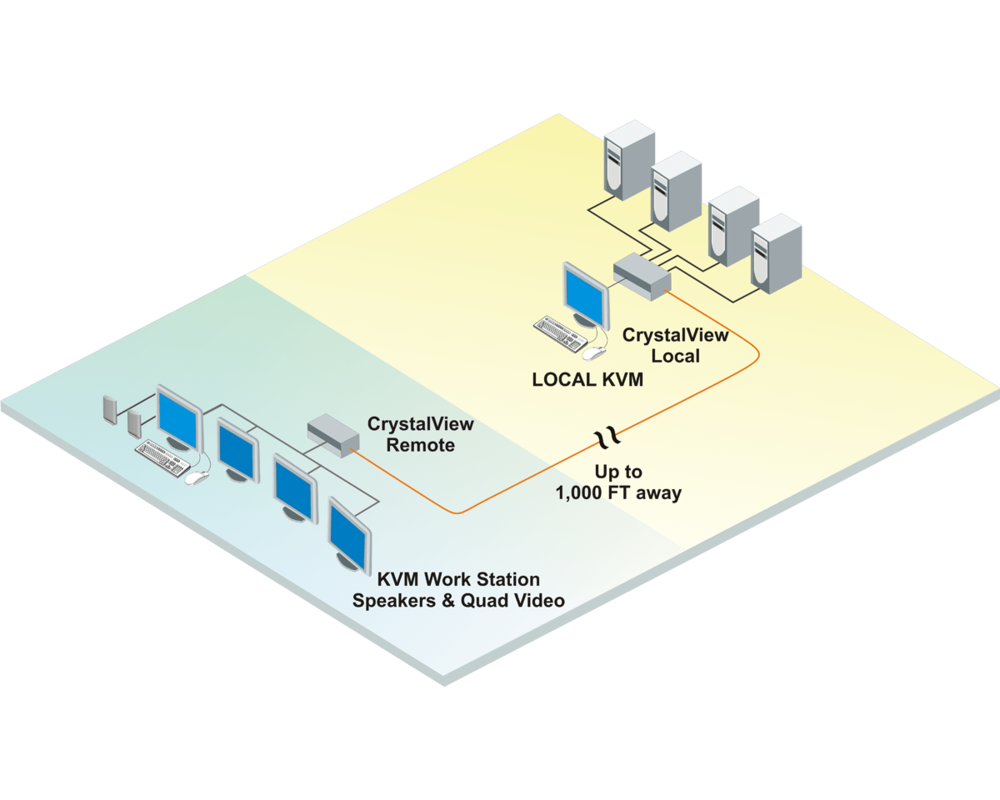

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| Kits (transmitter, receiver, and power supply) | |
| CRK-1P1V | KVM Extender Kit - Single-video, VGA, PS/2 (CRV-SL1 + CRV-R1V) |
| CRK-1P2V | KVM Extender Kit - Dual-head, VGA, PS/2 (CRV-SL2 + CRV-R2V) |
| CRK-2P1V | KVM Extender Kit - Single-video, dual access, VGA, PS/2 (CRV-DL1 + CRV-R1V) |
| Local units (Transmitters) | |
| CRV-SL1 | Local unit - Single-video, VGA, PS/2 |
| CRV-SL2 | Local unit - Dual-head, VGA, PS/2 |
| CRV-DL1 | Local unit - Single-video, dual-access, VGA, PS/2 |
| Remote Units (Receivers) | |
| CRV-R1V | Remote unit - Single-video, VGA, PS/2 |
| CRV-R2V | Remote unit - Dual-head, VGA, PS/2 |
| CRV-R4V | Remote unit - Quad-head, VGA, PS/2 |
| Options | |
| /AUD | Audio and serial option, add suffix to part number |
| Cables | |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-D9MFnnn | Cable, Serial, DB9M to DB9F |
| CAB-SPMMnnn | Cable, Stereo Audio, Mini-Phone M-M (3.5mm) |
| CAB-08UTPnnn | Cable, UTP CAT5, RJ45MM |
| Rack mount brackets | |
| RM-BR1 | Rack Mount brackets for CRV-SL1, CRV-SL1/AUD, CRV-DL1, CRV-DL1/AUD |
| RM-BR3 |
Rack Mount shelf for CRV-SL2, CRV-SL2/AUD, CRV-R1V, CRV-R1V/AUD, CRV-R2V, CRV-R2V/AUD, CRV-R4V, CRV-R4V/AUD |
