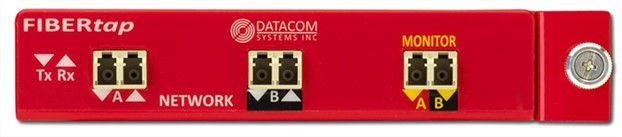

FTP-1000 Network Tap

문의

1 and 10 Gigabit Fiber Tap
with 10 or 1G Network, 10 or 1G Monitoring Connection.
Support multiple topologies, including 10 Gigabit Ethernet, ATM,
OC3-OC48, and SONET.

FEATURES

탭을 사용하면 SPAN 포트를 사용하여 네트워크 모니터링을 수행 할 때 보이지 않는 계층 1 및 2 오류를 볼 수 있음
다양한 분할 비율, 멀티모드 또는 싱글모드 구성으로 제공
- 랙 마운트 이어 포함
- 3개의 탭이 있는 1U 랙 마운트 옵션
- 4U 12 베이 랙 사용 가능

SPECIFICATION

Network Port	Ten (10) or One (1) Gigabit (LC or SC) Tap Network Connection
Monitor Port	Ten (10) or One (1) Gigabit (LC or SC) Monitoring Connection
Split Ratio	50/50, 70/30 ( Additional Split Ratios Available )
Fiber Type	OM3
Insertion Loss*	Multimode (choose 50/62.5 micron diameter) 50/50 = 4.2 dB
	Multimode (choose 50/62.5 micron diameter) 70/30 = 3.0 / 6.7 dB
	Singlemode (9 micron diameter) 50/50 = 3.9 dB
	Singlemode (9 micron diameter) 70/30 = 2.2 / 6.3 dB
	* approximate per fiber
Certifications	CE, RoHS
Dimensions (H x W x D)	1.07 x 5.00 x 5.00 in (2.7 x 12.72 x 12.7 cm)
Weight	12 oz. (0.34 kgs)
Environmental	Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing
Warranty	Two (2) Year Standard Hardware Warranty

ORDERING INFORMATION (Additional Split Ratios Available)

Product	Description
FTP-1504	50/50 50 micron Fiber Tap (LC Connectors)
FTP-1505	50/50 62.5 micron Fiber Tap (LC Connectors)
FTP-1506	50/50 9 micron Fiber Tap (LC Connectors)
FTP-1704	70/30 50 micron Fiber Tap (LC Connectors)
FTP-1705	70/30 62.5 micron Fiber Tap (LC Connectors)
FTP-1706	70/30 9 micron Fiber Tap (LC Connectors)
FTP-1510	50/50 50 micron Fiber Tap (SC Connectors)
FTP-1511	50/50 62.5 micron Fiber Tap (SC Connectors)
FTP-1512	50/50 9 micron Fiber Tap (SC Connectors)
FTP-1710	70/30 50 micron Fiber Tap (SC Connectors)
FTP-1711	70/30 62.5 micron Fiber Tap (SC Connectors)
FTP-1712	70/30 9 micron Fiber Tap (SC Connectors)
