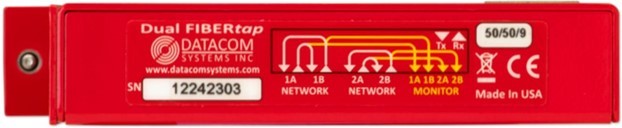

FTP-2000 Network Tap
문의

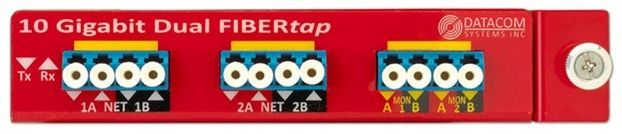

1 and 10 Gigabit Fiber Tap
with 2 -10 or 1G Network, 2 -10 or 1G Monitoring Connection.
with 2 -10 or 1G Network, 2 -10 or 1G Monitoring Connection.
FEATURES
- Datacom Systems의 Dual Fiber Tap은 여러 토폴로지를 지원
- 파이버 링크에 대한 완전한 액세스를 제공: 탭을 사용하면 SPAN 포트를 사용하여 네트워크 모니터링을 수행할 때 보이지 않는 계층 1 및 2 오류를 볼 수 있음
- 다양한 분할 비율로 제공되며 1RU(1.75”)로 편리하게 랙에 장착 가능
SPECIFICATION
| Network Port | Two (2) Ten (10) or One (1) Gigabit (LC) Tap Network Connections |
| Monitor Port | Two (2) Ten (10) or One (1) Gigabit (LC) Monitoring Connections |
| Split Ratio | 50/50, 70/30 ( Additional Split Ratios Available ) |
| Fiber Type | OM3 |
| Insertion Loss* | Multimode (choose 50/62.5 micron diameter) 50/50 = 4.2 dB |
| Multimode (choose 50/62.5 micron diameter) 70/30 = 3.0 / 6.7 dB | |
| Singlemode (9 micron diameter) 50/50 = 3.9 dB | |
| Singlemode (9 micron diameter) 70/30 = 2.2 / 6.3 dB | |
| * approximate per fiber | |
| Certifications | CE, RoHS |
| Dimensions (H x W x D) | 1.07 x 5.00 x 5.00 in (2.7 x 12.72 x 12.7 cm) |
| Weight | 12 oz. (0.34 kgs) |
| Environmental |
Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing |
| Warranty | Two (2) Year Standard Hardware Warranty |
ORDERING INFORMATION (Additional Split Ratios Available)
| Product | Description |
| FTP-2504 | 50/50 50 micron Dual Fiber Tap (50 Micron) |
| FTP-2506 | 50/50 9 micron Dual Fiber Tap (9 Micron) |
| FTP-2704 | 70/30 50 micron Dual Fiber Tap (50 Micron) |
| FTP-2706 | 70/30 9 micron Dual Fiber Tap (9 Micron) |
