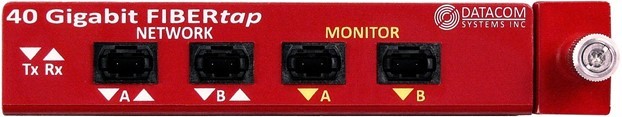

40G-SR4 Fiber Tap (FTP-1514)
문의

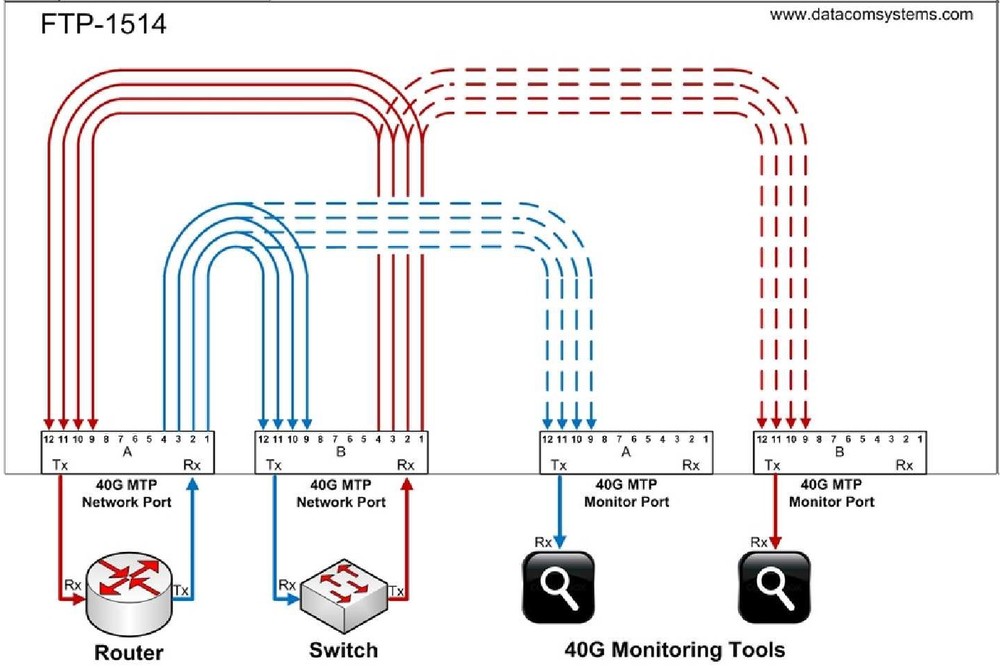

40G Fiber Tap with 2 -40Gb MTP Network Connections,
2 -40Gb MTP Monitoring Connections.
2 -40Gb MTP Monitoring Connections.
FEATURES
- 탭에서는 SPAN 포트를 사용하여 네트워크 모니터링을 수행할 때 보이지 않는 계층 1 및 2 오류를 볼 수 있음
- OM3 섬유
- 랙 마운트 이어 포함
- 3 개의 탭이 있는 1U 랙 마운트 옵션
- 4U 12 베이 랙 사용 가능
SPECIFICATION
| Network Port | Two (2) 40Gb MTP Network Connections |
| Monitor Port | Two (2) 40Gb MTP Monitoring Connections |
| Split Ratio | 50/50, 70/30 |
| Fiber Type | OM3 |
| Insertion Loss* | 50/50 split ratio results in a 4.6 dB insertion loss |
| 70/30 split ratio results ina a 6.6/2.6 dB insertion loss | |
| * approximate per fiber | |
| Certifications | CE, RoHS |
| Dimensions (H x W x D) | 1.07 x 5 x 7 in (2.7 x 12.7 x 17.78 cm) |
| Weight | 15 oz (0.43 kgs) |
| Environmental |
Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing |
| Warranty | Two (2) Year Standard Hardware Warranty |
ORDERING INFORMATION (Additional Split Ratios Available)
| Product | Description |
| FTP-1514 |
40Gb Passive TAP with 2 MTP ports to tap a 12 fiber strand link. 50/50 split ratio, 50 micron fiber, with 2 separate MTP output ports. |
| FTP-1714 |
40Gb Passive TAP with 2 MTP ports to tap a 12 fiber strand link. 70/30 split ratio, 50 micron fiber, with 2 separate MTP output ports. |
