FEATURES
SPECIFICATION
Ports |

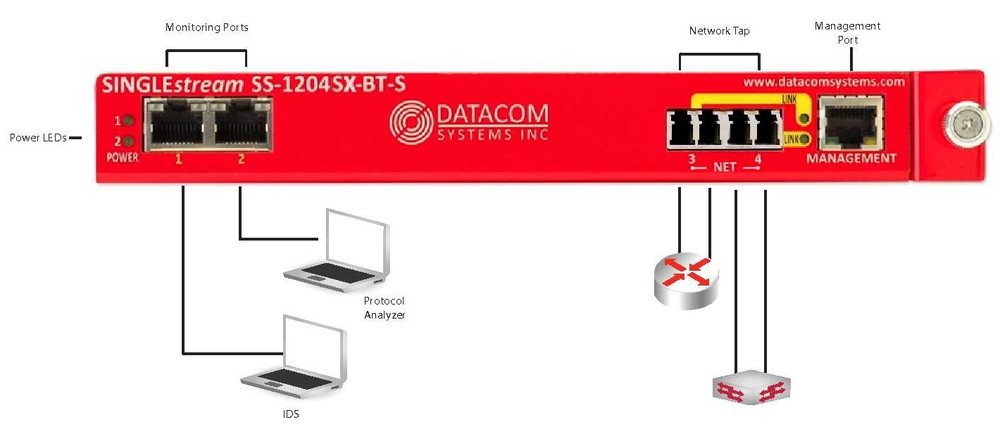

Network: One (1) 1000 Network Tap (LC) (specify 50 or 62.5 micron) Monitoring: Two (2) 10/100/1000 Any-to-Any Ports (RJ45) Management (front): RJ45 @ 100 Mbps Full-Duplex Serial (rear): DB9F |
Split Ratio | 50/50, 70/30, 80/20 (Additional Split Ratios Available) |
Insertion Loss* |
Multimode (choose 50/62.5 micron diameter) 50/50 = 4.2 dB Multimode (choose 50/62.5 micron diameter) 70/30 = 3.0 / 6.7 dB * typical per fiber |
Power Requirements |
Two (2) External AC Adapters (included) Input: 100-240 VAC, 50-60Hz, 0.8A |
Certifications | CE, RoHS |
Dimensions (H x W x D) | 1.10 x 8.00 x 7.00 in (2.79 x 20.32 x 17.78 cm) |
Weight | 1.6 lbs (0.7 kgs) |
Environmental |
Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing |
Warranty |
One (1) Year Hardware Warranty included Advanced Replacement-Next Day, 3rd Business Day options available. |
ORDERING INFORMATION
Product | Description |
SS-1204SX-BT-S | SINGLEstream™ 10/100/1000 Link Aggregation Tap with 2 Any-to-Any (RJ45) Monitoring ports with SSH, SNMP (specify 50 or 62.5 micron) |
Optional Equipment | |
RMC-2 | 2-TAP 1U Rack Mount Chassis |
RMC-12-2 | 12-TAP 6U Rack Mount Chassis |
RPS-12-5-AC (or -DC) | 12-TAP Dual Redundant Rack Mountable Power Supply Unit (Specify AC or DC) |
