TS-1404 Aggregation TAP

문의

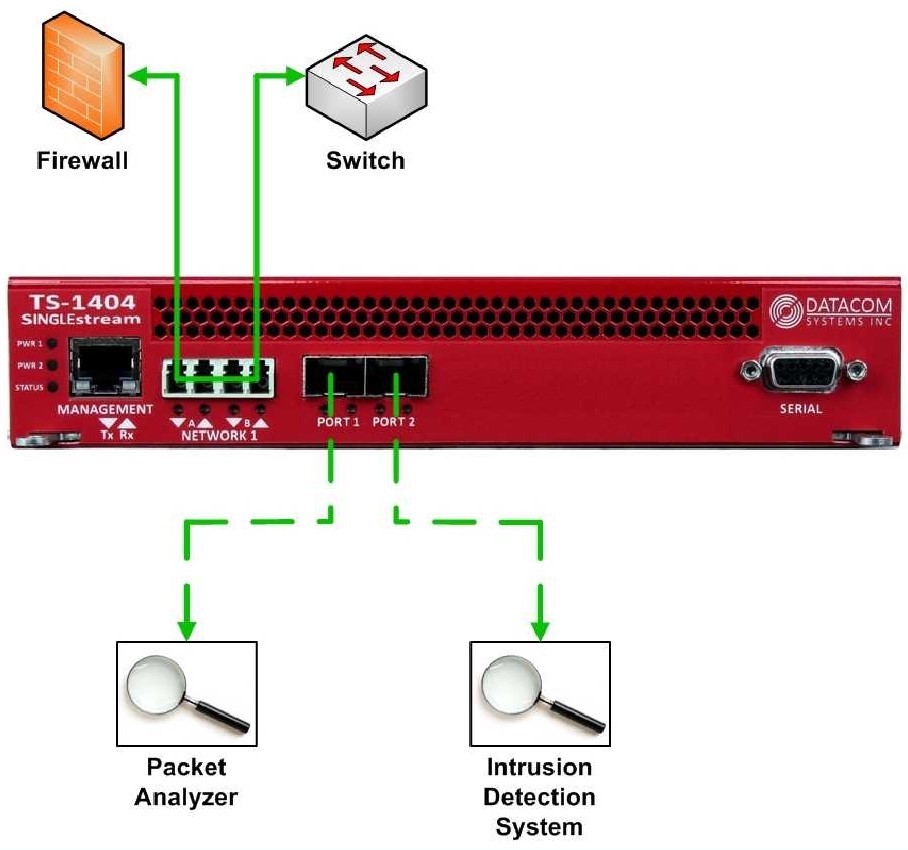

4 Port 10G/1G Aggregation Network Tap.
Supports 1 Tapped link, 2 Any-To-Any ports.

FEATURES



  • Aggregation/Regeneration: 여러 네트워크 링크 또는 채널을 하나의 스트림으로 결합하거나 연결된 여러 도구로 사본을 보내 데이터 소스를 공유
  • 미디어 변환: 미디어 유형에 관계없이 기존 모니터링 도구 활용
  • 1000Mbps~10Gbps 범위의 포트 속도
  • 모든 기능이 활성화된 모든 포트: 포트/기능당 라이센스없음
  • 광범위한 CLI(telnet / SSH)를 사용하여 원격 또는 로컬로 장치 관리
  • 이중 중복 전원 공급장치로 가동 시간 모니터링
  • 사용자정의 이벤트에 대한 이메일 이벤트 알림
  • NTP 지원
  • 로컬 Syslog 지원









SPECIFICATION



Ports

Tap Ports: Two (2) 10/1G Fiber

Any-to-Any Ports: Two (2) SFP+/SFP (Supports SFP+ SR, LR, LRM, SFP SX, LX, BT)

Management Port: RJ45

Console Port: DB9

Insertion Loss

Multimode (50/62.5 micron diameter) 50/50 = 4.2 dB

Multimode (50/62.5 micron diameter) 70/30 = 3.0 / 6.7 dB

Singlemode (9 micron diameter) 50/50 = 3.9 dB

Singlemode (9 micron diameter) 70/30 = 2.2 / 6.3 dB

Power Requirements

Dual Redundant Hot Swappable Power Supplies (Included)

Maximum Power Consumption: Less than 90 Watts

Individual Power Supply Rating: 100-240V ~50-60Hz 7A MAX

Certifications CE, RoHS, ICES-0003 Class A
Dimensions (H x W x D)  1.5 x 8.3 x 12.5 in (3.81 x 21.08 x 31.75 cm)
Weight 3.75 lbs (1.7 kgs)
Environmental

Operating Temperature: 32º to 104ºF (0º to 40ºC)

Storage Temperature: -22º to 149ºF (-30º to 65ºC)

Humidity: 5 to 90% non-condensing

Warranty

One (1) Year Hardware Warranty included

Advanced Replacement-Next Day, 3rd Business Day options available.







ORDERING INFORMATION



Product Description
TS-1404-55 Taps one link and outputs copies to 2 monitoring ports. Installed on a 50 micron 10G/1G fiber link. 50/50 split ratio.
TS-1404-56 Taps one link and outputs copies to 2 monitoring ports. Installed on a 62.5 micron 10G/1G fiber link. 50/50 split ratio.
TS-1404-59 Taps one link and outputs copies to 2 monitoring ports. Installed on a 9 micron 10G/1G fiber link. 50/50 split ratio.
Optional Equipment
SFP+-SR/SX 10G/1G Multimode Fiber Transceiver
SFP+-LR/LX 10G/1G Singlemode Fiber Transceiver
SFP-SX        1G Multimode Fiber Transceiver
SFP-LX         1G Singlemode Fiber Transceiver
SFP-RJ45 1G Copper Transceiver
RMC-2C                                               Rack mount for TS-1406. Fits two units in a 1U chassis.
Model  Tap Split Ratio Tap Diameter
TS-1404-55 50/50  50 Micron
TS-1404-56 50/50  62.5 Micron
TS-1404-59 50/50  9 Micron
TS-1404-75    70/30  50 Micron
TS-1404-76 70/30  62.5 Micron
TS-1404-79                               70/30                                            9 Micron
