FEATURES
SPECIFICATION
Ports |

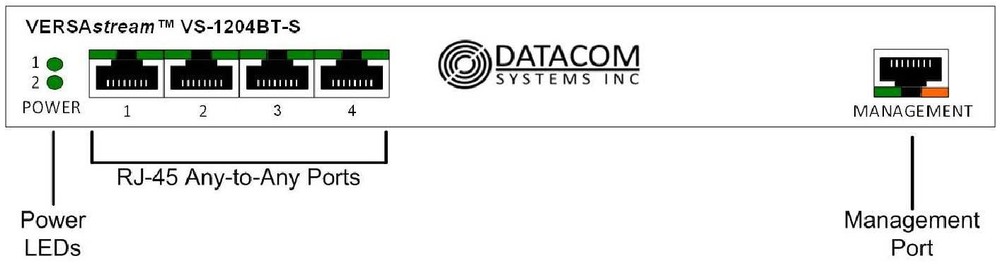

Any-to-Any Ports: Four (4) 10/100/1000 Any-to-Any ports (RJ45) Management Port: RJ45 Console Port: DB9F |
Power Requirements |
Two (2) External AC Adapters (included) Input: 100-240 VAC, 50-60Hz, 0.8A |
Certifications | CE, RoHS |
Dimensions (H x W x D) | 1.10 x 8.00 x 7.00 in (2.79 x 20.32 x 17.78 cm) |
Weight | 1.6 lbs (0.7 kgs) |
Environmental |
Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing |
Warranty |
One (1) Year Hardware Warranty included Advanced Replacement-Next Day, 3rd Business Day options available. |
ORDERING INFORMATION
Product | Description |
VS-1204BT-S | VERSAstream™ 4 Port 10/100/1000 Network Monitoring Switch |
Optional Equipment | |
RMC-2 | 2-TAP 1U Rack Mount Chassis |
RMC-12-2 | 12-TAP 6U Rack Mount Chassis |
RPS-12-5-AC (or -DC) | 12-TAP Dual Redundant Rack Mountable Power Supply Unit (Specify AC or DC) |
