FEATURES
SPECIFICATION
Ports |
Any-to-Any Ports: Twelve (12) (Supports SFP SX, LX, BT) Management Port: RJ45 Console Port: DB9 |
Power Requirements |
Single or Dual Redundant Hot Swappable Power Supplies (Included) Maximum Power Consumption: Less than 200 Watts Individual Power Supply Rating: 100-240V ~47-63Hz 4A MAX |
Certifications | CE, RoHS |
Dimensions (H x W x D) | 1.72 x 19.00 x 21.00 in (4.37 x 48.26 x 53.34 cm) |
Weight | 18.15 lbs (8.23 kgs) |
Environmental |
Operating Temperature: 32º to 131ºF (0ºC to 55ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 95% non-condensing |
Warranty |
One (1) Year Hardware Warranty incluced. Advanced Replacement-Next Day, third business day options available. |
Filtering |
IPv4 Address Sources and Destinations, Subnets MAC Address Sources and Destinations Ports Ethertype VLAN IPv6 Address Sources and Destinations, Subnets |
ORDER INFORMATION
Product | Description |

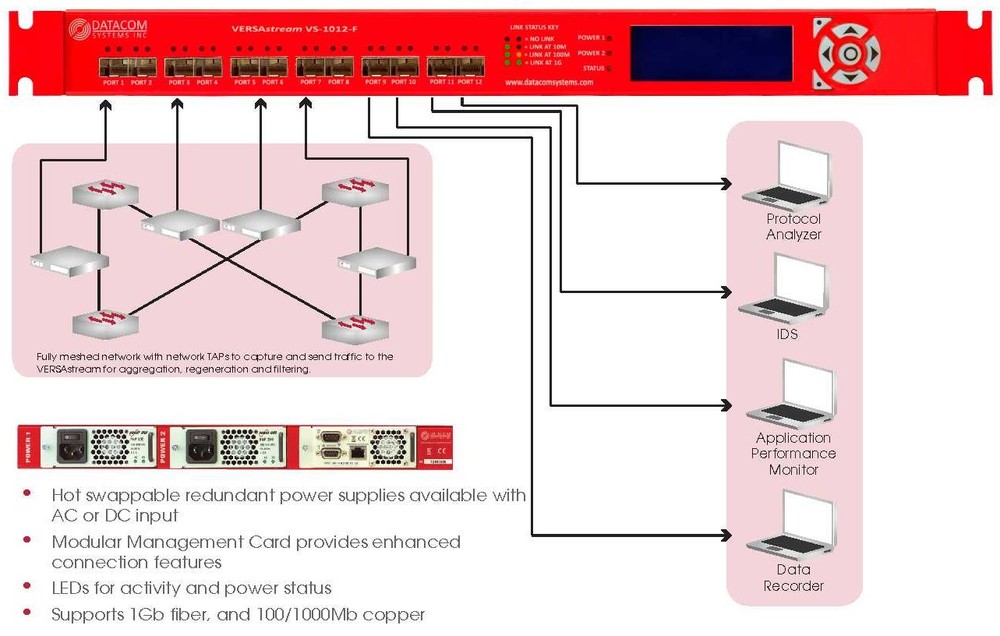

VS-1012-F | VERSAstream™ 12 Port Data Access Switch SFPs Dual Power Supply |
VS-1012-F-1 pwr | VERSAstream™ 12 Port Data Access Switch SFPs Single Power Supply |
Optional Equipment | |
SFP-SX | SX (50 or 62.5 micron) |
SFP-LX | LX (9 micron) |
SFP-RJ45 | 100/1000BT |
Rack mount ears included. |
