VS-1112-F Network Packet Broker

문의
VERSAstream™ 12 Port Data Access Switch SFPs.
( 8 1Gb ports; 4 10Gb ports; Supports SFP+ SR, LR, LRM, SFP SX, LX, BT)

FEATURES



  • Load Balancing: 중복 모니터링을 위해 여러 출력에서 세션 밸런스
  • 240Gbps 백플레인
  • 모든 포트는 포트당 라이센스없이 완전한 기능으로 활성화. 수동 TAP 또는 SPAN에서 입력
  • Filtering: 회선 속도 하드웨어 기반 필터링으로 포트 초과 가입을 제거
  • IPv4 Src/Dst 주소, MAC 주소, 프로토콜, 포트, Ethertypes (예: MPLS, VLAN, IPv6 Src / Dst 주소)에서 필터링

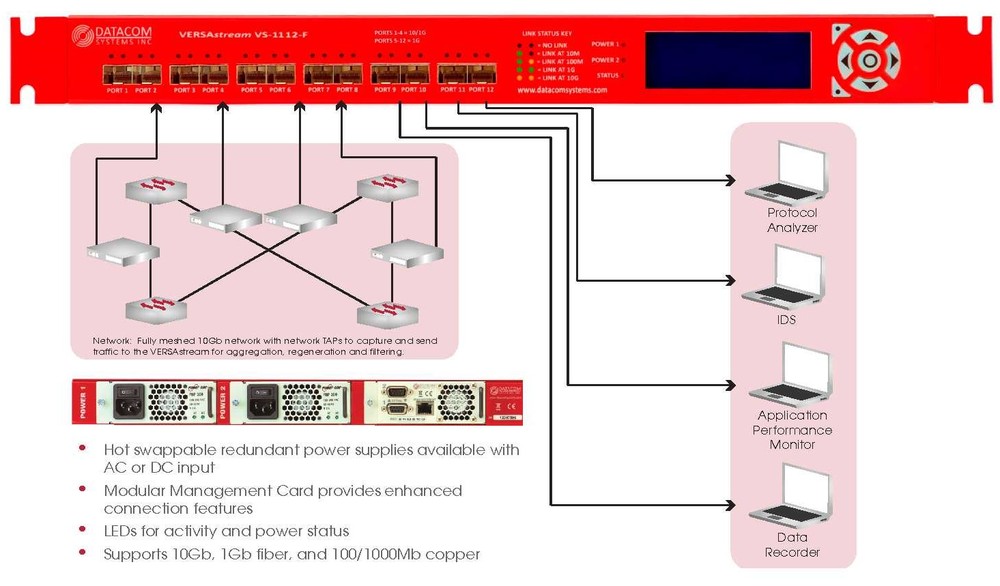

  • Aggregation/Regeneration: 여러 네트워크 링크 또는 채널을 하나의 스트림으로 결합하거나 연결된 여러 도구로 사본을 보내 데이터 소스를 공유
  • 미디어 변환: 미디어 유형에 관계없이 기존 모니터링 도구 활용
  • 웹 기반 관리(HTTP) 또는 광범위한 CLI(telnet / SSH)를 사용하여 원격 또는 로컬로 장치 관리
  • SNMP v2c, v3c
  • RADIUS, TACACS+









SPECIFICATION



Ports

Any-to-Any Ports: Eight (8) 1Gb ports and Four (4) 10Gb ports (Supports SFP+ SR, LR, LRM, SFP SX, LX, BT)

Management Port: RJ45

Console Port: DB9

Power Requirements

Dual Redundant Hot Swappable Power Supplies (Included)

Maximum Power Consumption: Less than 200 Watts

Individual Power Supply Rating: 100-240V ~47-63Hz 4A MAX

Certifications CE, RoHS
Dimensions (H x W x D)  1.72 x 19.00 x 21.00 in (4.37 x 48.26 x 53.34 cm)
Weight 18.15 lbs (8.23 kgs)
Environmental

Operating Temperature: 32º to 131ºF (0º to 55ºC)

Storage Temperature: -22º to 149ºF (-30º to 65ºC)

Humidity: 5 to 95% non-condensing

Warranty

One (1) Year Hardware Warranty incluced.

Advanced Replacement-Next Day, third business day options available.

Filtering

IPv4 Address Sources and Destinations, Subnets

MAC Address Sources and Destinations

Ports

Ethertype

VLAN

IPv6 Address Sources and Destinations, Subnets







ORDERING INFORMATION



Product Description
VS-1112-F VERSAstream™ 12 Port Data Access Switch SFPs
Optional Equipment
SFP+-SR/SX SR (50 or 62.5 micron)
SFP+-LR/LX LR (9 micron)
SFP-SX 1G Multimode Fiber Transceiver
SFP-LX 1G Singlemode Fiber Transceiver
SFP-RJ45                             100/1000BT
