DS-2408 Bypass Switch

문의

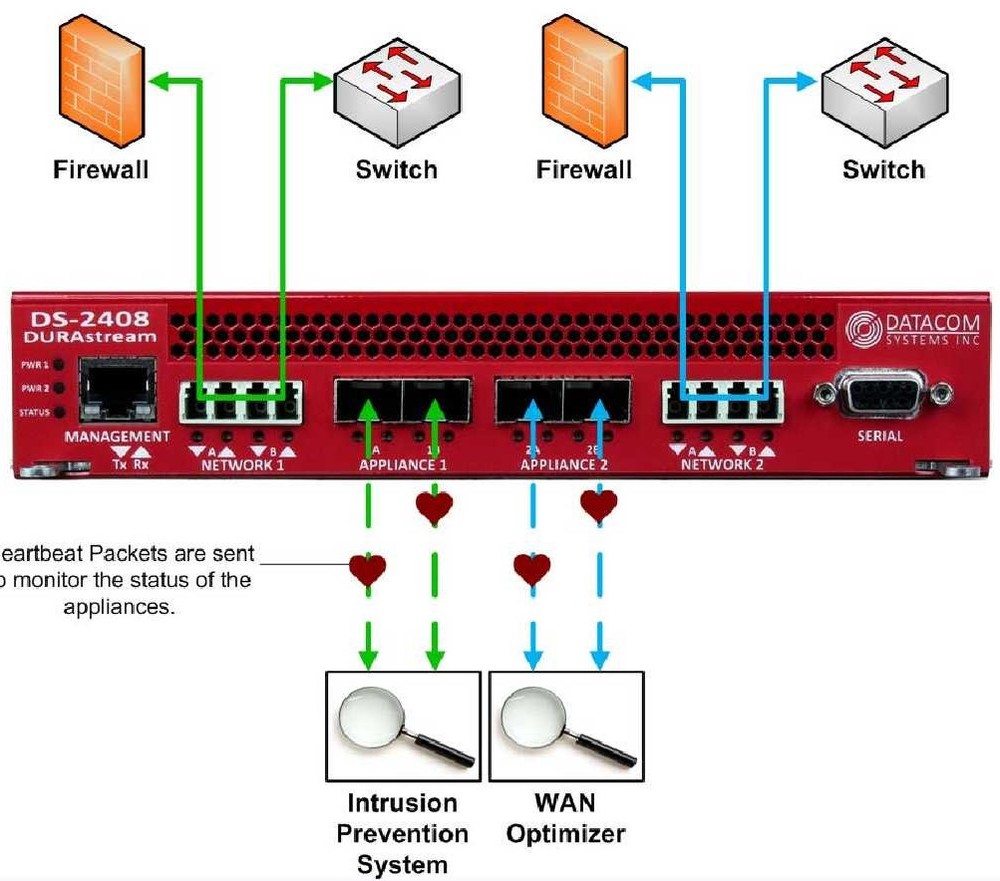

The DURAstream™ DS-2408 is a Double Segment 10G Bypass Switch.
Supports 2 Network Link, 2 Appliances.

FEATURES



  • Passive 바이패스는 전원 손실시 네트워크 무결성을 유지
  • 인라인 툴이 실패할 경우 Active 스위칭으로 네트워크 중단 방지
  • 사용자 구성 가능한 Heartbeat 모드는 인라인 어플라이언스의 링크 상태 및 상태를 모니터링
  • Copper, 싱글모드, 멀티모드 및 미디어 변환을 포함한 유연한 설치 옵션
  • 정전 보호 기능이 있는 중복 전원 공급 장치로 가동 시간 모니터링
  • 광범위한 CLI를 통한 원격 또는 로컬 관리 - SSH 지원
  • 사용자정의 이벤트에 대한 이메일 이벤트 알림
  • NTP 지원









SPECIFICATION



Ports

Network Ports: Four (4) 10/1G Fiber

Appliance Ports: Four (4) SFP+ (Supports SFP+ SR, LR, LRM, SFP SX, LX, BT)

Management Port: RJ45

Console Port: DB9

Power Requirements

Dual Redundant Hot Swappable Power Supplies (Included)

Maximum Power Consumption: Less than 90 Watts

Individual Power Supply Rating: 100-240V ~50-60Hz 7A MAX

Certifications CE, RoHS
Dimensions (H x W x D)  1.5 x 8.3 x 12.5 in (3.81 x 21.08 x 31.75 cm)
Weight 3.75 lbs (1.7 kgs)
Environmental

Operating Temperature: 32º to 104ºF (0º to 40ºC)

Storage Temperature: -22º to 149ºF (-30º to 65ºC)

Humidity: 5 to 90% non-condensing

Warranty

One (1) Year Hardware Warranty included

Premium Support option available DSY







ORDER INFORMATION



Product Description
DS-2408-5-5

Double Segment Bypass Switch w/ 2 inline  Appliance Pairs.

Installed on 50 micron 10G/1G fiber links.*

DS-2408-6-6

Double Segment Bypass Switch w/ 2 inline Appliance Pairs.

Installed on 62.5 micron 10G/1G fiber links.*

DS-2408-9-9

Double Segment Bypass Switch w/ 2 inline Appliance Pairs.

Installed on 9 micron 10G/1G fiber links.*

*Models with mixed micron fiber also available.

Optional Equipment


SFP+-SR/SX  10G/1G Multimode Fiber Transceiver
SFP+-LR/LX 10G/1G Singlemode Fiber Transceiver
SFP-SX

1G Multimode Fiber Transceiver

SFP-LX 1G Singlemode Fiber Transceiver
SFP-RJ45  1G Copper Transceiver
RMC-2C                                        Rack mount for DS-1404, DS-1406, DS-2408. Fits two units in a 1U chassis.
