FRM220-MSW-202

문의
2x GbE, RJ45 + 2x Dual Rate SFP L2+ Carrier Ethernet Switch (EDD)

MSW-202 is a carrier class Ethernet Demarcation Device (EDD) with 2x 10/100/1000Base-T Ethernet ports and 2 x 100/1000/2500Base-X triple rate SFP fiber ports which enables EPL (Ethernet Private Line) & EVPL (Ethernet Virtual Private Line) services with advanced carrier Ethernet features per the Metro Ethernet Forum (MEF 9 and 14).

By supporting link and service Ethernet OAM schemes, the MSW-202 also provides extensive fault detection and diagnostic capabilities to ensure that actual network use complies with pre-agreed service level agreements (SLAs).






FEATURES

  • Complies with MEF CE1.0
  • Supports 8K MAC
  • Spanning Tree 802.1D, 802.1s, 802.1w
  • Supports 802.1Q / 256 active VLANs
  • Double VLAN Tagging (C-tag/S-tag) (IEEE 802.1ad) support for ISP application
  • Various QoS capability (MAC/port/802.1p/Diffserv)
  • Port-based rate limiting
  • DHCP Snooping
  • IGMP Snooping
  • IPv6 support
  • IEEE 802.3x and IEEE 802.1x support
  • Jumbo frame for up to 9.6K
  • Extensive Ethernet OAM support
  • IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731
  • SNMP v1/v2c/v3, Telnet, Web GUI
  • IEEE 1588 V2 aware (Optional)

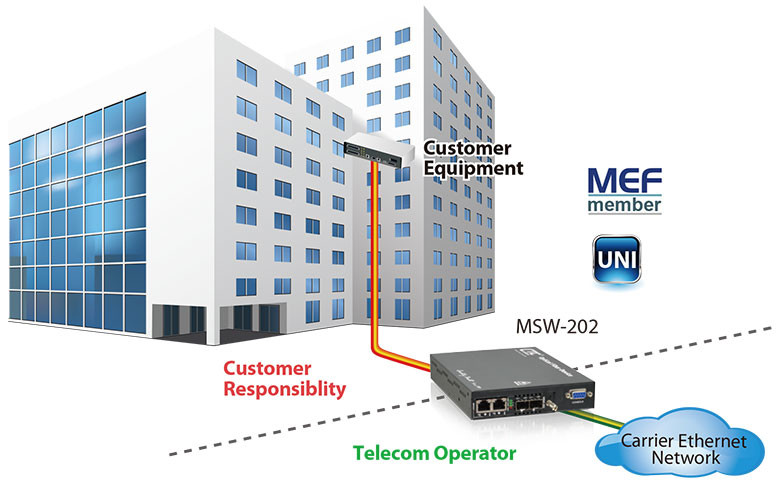

APPLICATION
