UltraView Pro
문의
1×4, 1×8, 1×16 KVM Switch
• VGA • USB • PS/2 • OSD
• VGA • USB • PS/2 • OSD
FEATURES
- 세 가지 섀시 크기로 제공 :
- 2 또는 4포트 (M 섀시)
- 4 또는 8포트 (B 섀시)
- 4, 8, 12 또는 16포트 (C 섀시)
- 최대 100ft 길이의 우수한 케이블 관리를 위해 UltraCable™ 사용
- 최대 1920x1200의 비디오 해상도
- 구성 및 컴퓨터 선택을 위한 화면 메뉴
- 구성 및 사용자 암호가 있는 보안 시스템으로 무단 구성 및 사용자 액세스를 방지
- 키보드, 전면 패널, 온 스크린 메뉴 또는 RS232 포트에서 컴퓨터 전환
- PC, UNIX, Apple 또는 Sun 키보드 및 마우스 데이터를 모든 플랫폼으로 변환하는 멀티 플랫폼 모델
- 멀티 플랫폼 모델은 오디오 또는 직렬 통과 (터치 스크린)도 지원
- 최대 256대의 컴퓨터를 지원하는 내장 데이지 체인
- 제품 향상을 위한 무료 펌웨어 업그레이드
- 19", 23" 및 24" 크기의 랙 마운트 키트

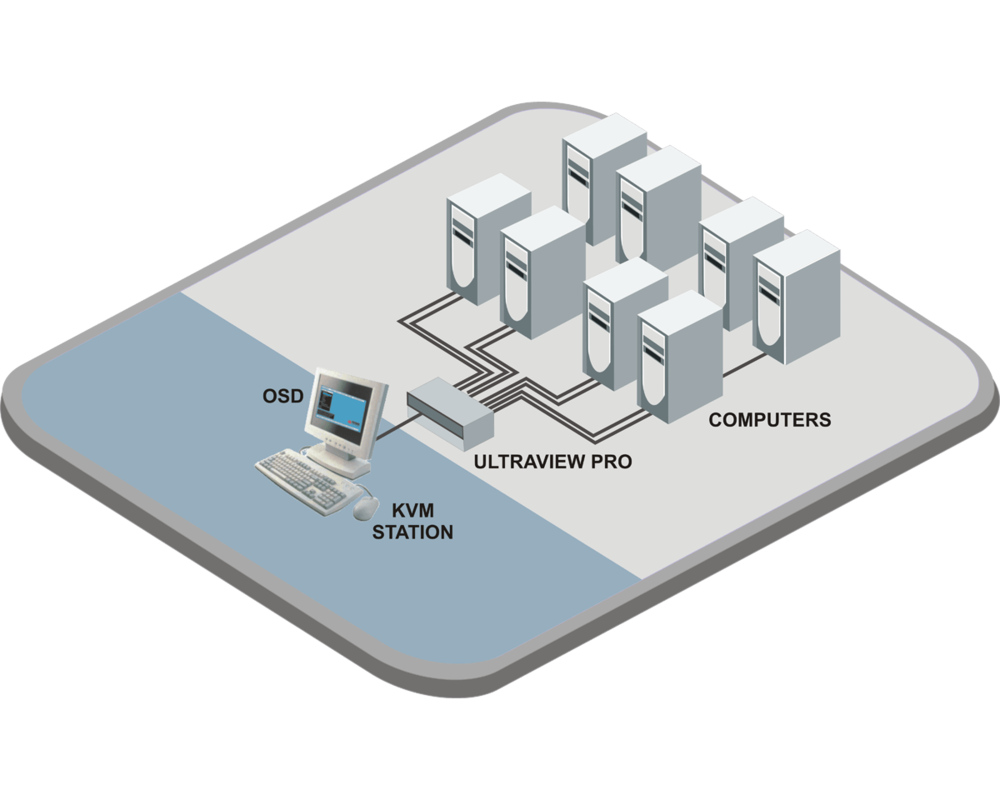

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| UPM-2UB | UltraView Pro, 1x2 KVM Switch, PC-UNIX, OSD, M Chassis 1U |
| UPM-4UB | UltraView Pro, 1x4 KVM Switch, PC-UNIX, OSD, M Chassis 1U |
| UPB-4UB | UltraView Pro, 1x4 KVM Switch, PC-UNIX, OSD, B Chassis 1U |
| UPB-8UB | UltraView Pro, 1x8 KVM Switch, PC-UNIX, OSD, B Chassis 1U |
| UPC-16UB | UltraView Pro, 1x16 KVM Switch, PC-UNIX, OSD, C Chassis 2U |
| UEM-2UB | UltraView Pro, 1x2 KVM Switch, Multi-Platform, OSD, M Chassis 1U |
| UEM-4UB | UltraView Pro, 1x4 KVM Switch, Multi-Platform, OSD, M Chassis 1U |
| UEB-4UB | UltraView Pro, 1x4 KVM Switch, Multi-Platform, OSD, B Chassis 1U |
| UEB-8UB | UltraView Pro, 1x8 KVM Switch, Multi-Platform, OSD, B Chassis 1U |
| UEC-16UB | UltraView Pro, 1x16 KVM Switch, Multi-Platform, OSD, C Chassis 2U |
| RM-UMxx | Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24") |
| RM-UBxx | Rack Mount kit, 1U, B Chassis (xx = 19", 23", or 24") |
| RM-UCxx | Rack mount kit, 2U, C Chassis (xx = 19", 23", or 24") |
| Cable Part Number | Description |
| CAB-ZX0606Mnnn | UltraCable, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-ZX0606Cnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606Mnnn | UltraCable Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CX0606Cnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse |
| CAB-CXVUSBMnnn | UltraCable Hi-Res, Switch to KVM, DB25M to VGA-USB Keyboard + Mouse |
| CAB-CXUSBCnnn | UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse |
| CAB-CXAV0400Mnnn | UltraCable Hi-Res, Switch to Apple KVM, DB25M to DB15F-ADB Keyboard + Mouse |
| CAB-C1V0400Mnnn | UltraCable Hi-Res, Switch to Apple KVM, DB25M to VGA-ADB Keyboard + Mouse |
| CAB-3W30606Mnnn | UltraCable Hi-Res, Switch to RS6000 KVM, DB25M to 3W3F-PS/2 Keyboard + Mouse |
| CAB-R13W30606Mnnn | UltraCable Hi-Res, Switch to RS6000 KVM, DB25M to 13W3F-PS/2 Keyboard + Mouse |
| CAB-S13W30606Mnnn | UltraCable Hi-Res, Switch to SGI KVM, DB25M to 13W3F-PS/2 Keyboard + Mouse |
| CAB-RGBHV0606Mnnn | UltraCable Hi-Res, Switch to RGB KVM, DB25M to RGBHV-PS/2 Keyboard + Mouse |
| CAB-CXVSMMnnn | UltraCable Hi-Res, Switch to Switch, DB25M to DB25M |
| CAB-CXAV0400Cnnn | UltraCable Hi-Res, Apple to Switch, DB25M to DB15M-ADB Keyboard + Mouse |
| CAB-C1V0400Cnnn | UltraCable Hi-Res, Apple to Switch, DB25M to VGA-ADB Keyboard + Mouse |
| CAB-3W30606Cnnn | UltraCable Hi-Res, RS6000 to Switch, DB25M to 3W3M -PS/2 Keyboard + Mouse |
| CAB-R13W30606Cnnn | UltraCable Hi-Res, RS6000 to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse |
| CAB-S13W30606Cnnn | UltraCable Hi-Res, SGI to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse |
| Cables - Audio Application | Description |
| CAB-ZX0606MAnnn | UltraCable, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-ZX0606CAnnn | UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CX0606MAnnn | UltraCable Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CX0606CAnnn | UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio |
| CAB-CXVUSBMAnnn | UltraCable Hi-Res, Switch to KVM, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio |
| CAB-CXUSBCAnnn | UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio |
| Cables - Serial Application | Description |
| CAB-C1V060609Cnnn/S3 | Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen |
| CAB-C1V060609Mnnn/S3 | Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen |
| ACC-D9MF-PCSW | Enables (DB9 serial) touchscreen signals to pass through the switch to the touchscreen (Install between the Switch and the Touchscreen) |
| ACC-D9MF-CVTS | Enables (DB9 serial) touchscreen signals to pass through the switch and the CrystalView to the touchscreen (Install between the remote CrystalView Extender and Monitor) |
| Cables - SUN Application | Description |
| CAB-CXV0800Cnnn | UltraCable Hi-Res, Sun to Switch, DB25M to VGA-Sun Keyboard + Mouse |
| CAB-SCX0800Cnnn | UltraCable Hi-Res, Sun to Switch, DB25M to 13W3-Sun Keyboard + Mouse |
| CAB-CXV0800Mnnn | UltraCable Hi-Res, Switch to Sun KVM, DB25M to VGA-Sun Keyboard + Mouse |
| CAB-SBX0800Mnnn | UltraCable Hi-Res, Switch to Sun KVM, DB25M to 13W3F-Sun Keyboard + Mouse |
