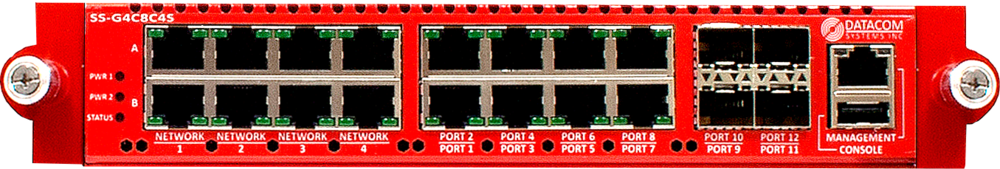

SS-G4C8C4S Aggregation TAP

문의
4 Copper 10/100/1000 taps (2 ports per tap), 8 Copper 10/100/1000-BT and 4 SFP+ Any-to-Any ports

FEATURES



  • 모니터링 도구를 통합하여 관리 비용 및 도구 비용 절감

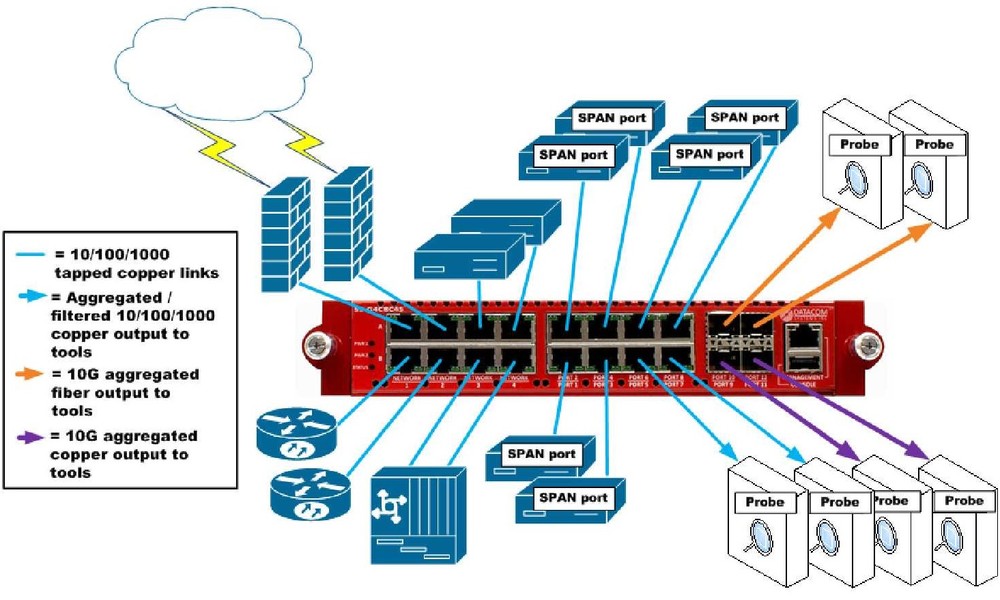

  • 1G/10G 모니터링 도구를보다 효율적으로 사용하기 위해 여러 개의 10/100/1000 구리 링크를 동시에 모니터링
  • Fault tolerant: 수동 바이 패스 기능
  • Load Balancing: 중복 모니터링을 위해 여러 출력에서 세션 밸런스
  • Filtering: 회선 속도 하드웨어 기반 필터링으로 포트 초과 가입 제거
  • Media and Speed Conversion: 속도 또는 미디어 유형에 관계없이 기존 모니터링 도구 활용
  • DAC (Direct Attach Cables) 지원











SPECIFICATION



Ports

Any-to-Any Ports:

Eight (8) copper 10/100/1000 ports comprising four (4) 10/100/1000 tap assemblies

Four (4) SFP+ ports supporting DAC, SX/SR, LX/LR, or 10/100/1000/10G copper transceiver modules

Management Port: RJ45

Console Port: USB Device Mode

Power Requirements

Two (2) External AC Adapters Redundant Hot Swappable Power Supplies (Included)

Maximum Power Consumption: 60 Watts or less

Individual Power Supply Rating: 100-240V ~50-60Hz 1.3A

Certifications CE, RoHS
Dimensions (H x W x D)  1.58" x 8.25" x 11.93" (4.01 x 20.96 x 30.30 cm)
Weight 4.75 lbs (2.2 Kg)
Environmental

Operating Temperature: 32º to 131ºF (0ºC to 55ºC)

Storage Temperature: -22º to 149ºF (-30º to 65ºC)

Humidity: 5 to 95% non-condensing

Safety CB IEC 62368-1
Emissions FCC, EN, ICES-003
Standards

FCC 47CFR PT 15 SPT B:2017

ICES-003 Issue 6:2016

CENELEC EN 55032:2012

Warranty

One (1) Year Hardware and Software support included. Premium Support option available.

Filtering

IPv4 Address Sources and Destinations, Subnets

MAC Address Sources and Destinations

Ports

Ethertype

VLAN

IPv6 Address Sources and Destinations, Subnets







ORDERING  INFORMATION



Product Description
SS-G4C8C4S Four (4) copper 10/100/1000 taps (2 ports per tap,) eight (8) copper 10/100/1000-BT and four (4) SFP+ Any-to-Any ports
SFP-RJ45 10/100/1000BT copper SFP transceiver module
SFP-RJ45-10G 10G copper SFP+ transceiver module
SFP+SR/SX       10G/1G SFP transceiver module (50 or 62.5 micron 300m)
SFP+ LR/LX         10G/1G SFP+ transceiver module (9 micron 10km)
SFP+DAC(2M) 10G SFP+ 2 meter direct attach passive cable
Other transceivers and DAC cable lengths available on request
RMC-2G                                               Rack mount chassis - fits two units into 1RU
