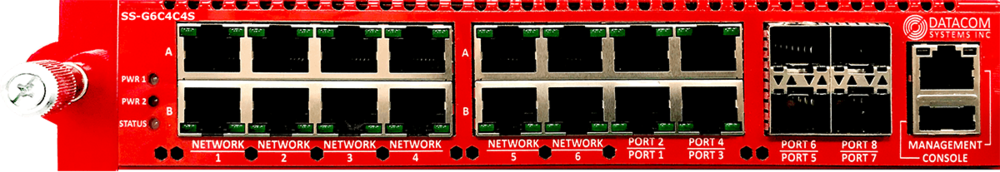

SS-G6C4C4S Aggregation TAP
문의
6 Copper taps (2 ports per tap,) 4 Copper 10/100/1000-BT and 4 SFP+ Any-to-Any ports
FEATURES
- 모니터링 도구를 통합하여 관리 비용 및 도구 비용 절감

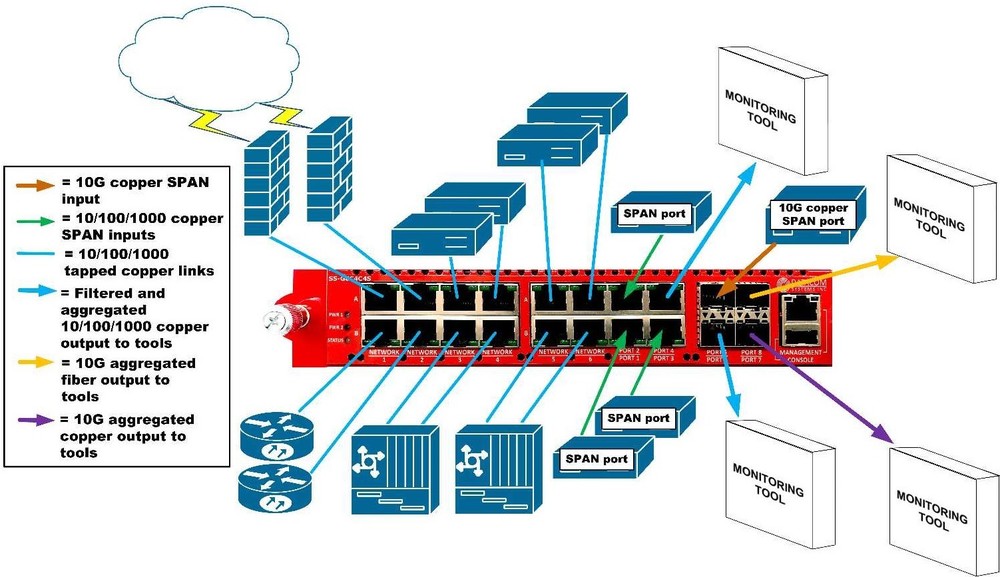

- 1G/10G 모니터링 도구를보다 효율적으로 사용하기 위해 여러 개의 10/100/1000 구리 링크를 동시에 모니터링
- Fault tolerant: 수동 바이 패스 기능
- Load Balancing: 중복 모니터링을 위해 여러 출력에서 세션 밸런스
- Filtering: 회선 속도 하드웨어 기반 필터링으로 포트 초과 가입 제거
- Media and Speed Conversion: 속도 또는 미디어 유형에 관계없이 기존 모니터링 도구 활용
- DAC (Direct Attach Cables) 지원
SPECIFICATION
| Ports |
Taps: Six (6) 10/100/1000 copper taps (2 ports per tap) Any-to-Any Ports: Four (4) copper 10/100/1000-BT, Four (4) SFP+ ports Management Port: RJ45 Console Port: USB Device Mode |
| Power Requirements |
Two (2) External AC Adapters Redundant Hot Swappable Power Supplies (Included) Maximum Power Consumption: 60 Watts or less Individual Power Supply Rating: 100-240V ~50-60Hz 1.3A |
| Certifications | CE, RoHS |
| Dimensions (H x W x D) | 1.58" x 8.25" x 11.93" (4.01 x 20.96 x 30.30 cm) |
| Weight | 4.75 lbs (2.2 Kg) |
| Environmental |
Operating Temperature: 32º to 131ºF (0ºC to 55ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 95% non-condensing |
| Safety | CB IEC 62368-1 |
| Emissions | FCC, EN, ICES-003 |
| Standards |
FCC 47CFR PT 15 SPT B:2017 ICES-003 Issue 6:2016 CENELEC EN 55032:2012 |
| Warranty |
One (1) Year Hardware and Software support included. Premium Support option available. |
| Filtering |
IPv4 Address Sources and Destinations, Subnets MAC Address Sources and Destinations Ports Ethertype VLAN IPv6 Address Sources and Destinations, Subnets |
ORDERING INFORMATION
| Product | Description |
| SS-G6C4C4S | Six (6) copper taps (2 ports per tap), four (4) copper 10/100/1000-BT and four (4) SFP+ Any-to-Any ports |
| SFP-RJ45 | 10/100/1000BT copper SFP transceiver module |
| SFP-RJ45-10G | 10G copper SFP+ transceiver module |
| SFP+SR/SX | 10G/1G SFP transceiver module (50 or 62.5 micron 300m) |
| SFP+ LR/LX | 10G/1G SFP+ transceiver module (9 micron 10km) |
| SFP+DAC(2M) | 10G SFP+ 2 meter direct attach passive cable |
| Other transceivers and DAC cable lengths available on request | |
| RMC-2G | Rack mount chassis - fits two units into 1RU |
