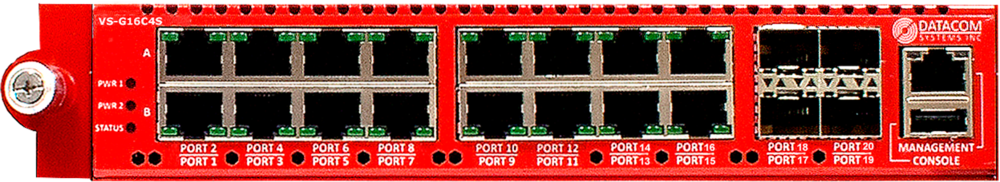

VS-G16C4S
문의
20 Port network packet broker
with 16 copper 10/100/1000 ports and four (4) SFP+ ports
with 16 copper 10/100/1000 ports and four (4) SFP+ ports
FEATURES

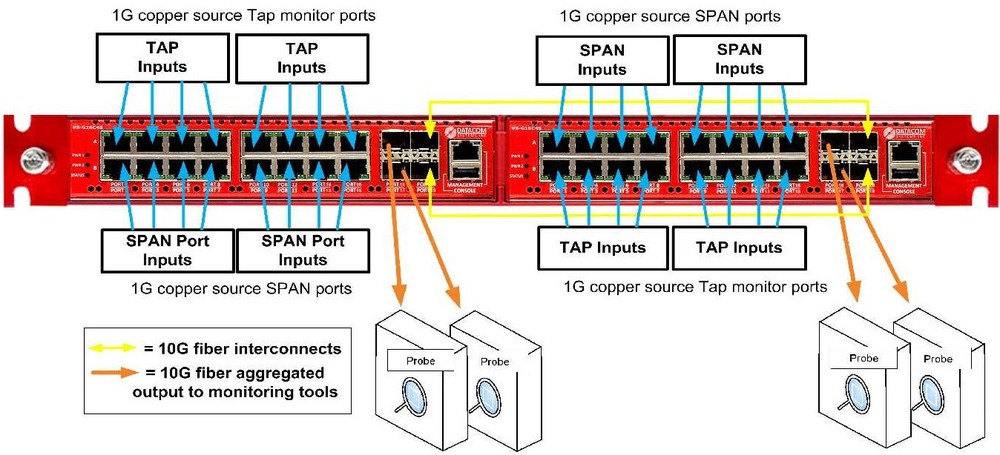

- 1RU에서 최대 32개의 10/100/1000 및 8개의 SFP+ 포트 (2개의 장치 필요)
- SFP+ 포트는 1G/10G 파이버, 10/100/1000/10G 구리 및 DAC 지원
- 중복성을 모니터링하기 위해 여러 출력에 걸친 로드 밸런스 세션
- 제한 사항 전체에서 포트 초과 가입 또는 도구를 줄이기 위한 필터
- Filter on: Ipv4 Src/Dst Address; MAC Address; Protocol, Port and Ethertypes (예: MPLS, VLAN, IPv6 Src/Dst Address)
- 여러 링크 또는 채널을 하나의 스트림으로 집계하거나 사본을 여러 도구로 복제
- SNMP, SYSLOG 및 이메일 알림 메커니즘
- Radius, TACACS+ 인증
- 단일 제어 및 데이터 평면이 가능한 자체 검색 메시 네트워크
- sFlow 및 IPFIX 가능
SPECIFICATION
| Ports |
Any-to-Any Ports: Sixteen (16) copper 10/100/1000 ports Four (4) SFP+ ports supporting DAC, SX/SR, LX/LR, or 10/100/1000/10G copper transceiver modules Management Port: RJ45 Console Port: USB Device Mode |
| Power Requirements |
Two (2) External AC Adapters Redundant Hot Swappable Power Supplies (Included) Maximum Power Consumption: 60 Watts or less Individual Power Supply Rating: 100-240V ~50-60Hz 1.3A |
| Certifications | CE, RoHS |
| Dimensions (H x W x D) | 1.58" x 8.25" x 11.93" (4.01 x 20.96 x 30.30 cm) |
| Weight | 4.75 lbs (2.2 Kg) |
| Environmental |
Operating Temperature: 32º to 131ºF (0ºC to 55ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 95% non-condensing |
| Safety | CB IEC 62368-1 |
| Emissions | FCC, EN, ICES-003 |
| Standards |
FCC 47CFR PT 15 SPT B:2017 ICES-003 Issue 6:2016 CENELEC EN 55032:2012 |
| Warranty |
One (1) Year Hardware and Software support included. Premium Support option available. |
| Filtering |
IPv4 Address Sources and Destinations, Subnets MAC Address Sources and Destinations Ports Ethertype VLAN IPv6 Address Sources and Destinations, Subnets |
ORDERING INFORMATION
| Product | Description |
| VS-G16C4S | 20 Port network packet broker with sixteen (16) copper 10/100/1000 ports and four (4) SFP+ ports |
| SFP-RJ45 | 10/100/1000BT copper SFP transceiver module |
| SFP-RJ45-10G | 10G copper SFP+ transceiver module |
| SFP+SR/SX | 10G/1G SFP transceiver module (50 or 62.5 micron 300m) |
| SFP+ LR/LX | 10G/1G SFP+ transceiver module (9 micron 10km) |
| SFP+DAC(2M) | 10G SFP+ 2 meter direct attach passive cable |
| Other transceivers and DAC cable lengths available on request | |
| RMC-2G | Rack mount chassis - fits two units into 1RU |
