Orion XC

문의

Fixed enterprise KVM Switch
• 8-80 Ports
• DVI/VGA/DP/SDI
• CATx or Fiber
• OSD

FEATURES

모든 CATx, 모든 광섬유 또는 혼합 CATx/광섬유에서 8, 16, 32, 48, 64 및 80 포트의 고정 포트 모델을 사용하는 소형 버전의 Orion-X 스위치
CATx 케이블에서 컴퓨터 및 KVM 스테이션을 460ft (140m), 광섬유에서 33,000ft (10Km)로 확장
각 스위치 포트는 입력 또는 출력이 가능
스위치 포트는 2, 4, 6 또는 21 카드 모듈식 섀시로 제공되는 송신기 또는 수신기에 연결
비디오는 VGA, DVI, 듀얼 링크 DVI, HDMI, DisplayPort 또는 SDI 일 수 있음
최대 1920×1200의 표준 비디오 해상도, 최대 4096×2160@60Hz의 UHD 4K 비디오 해상도
지연이나 디스플레이 블랭킹 없이 동일한 해상도의 비디오 소스를 즉시 전환
USB-HID 스위칭으로 표준 제공
PS/2 키보드-마우스, USB2.0, USB3.0, 아날로그 또는 디지털 오디오, 직렬 RS232 및 이중화 링크의 선택적 전환을 선택
온 스크린 디스플레이, 직렬, 웹 기반 GUI, SNMP 또는 핫키 명령을 통한 액세스
매트릭스 그리드 기능을 사용하여 스위치를 상호 연결
중복 전원 공급 장치 (옵션)

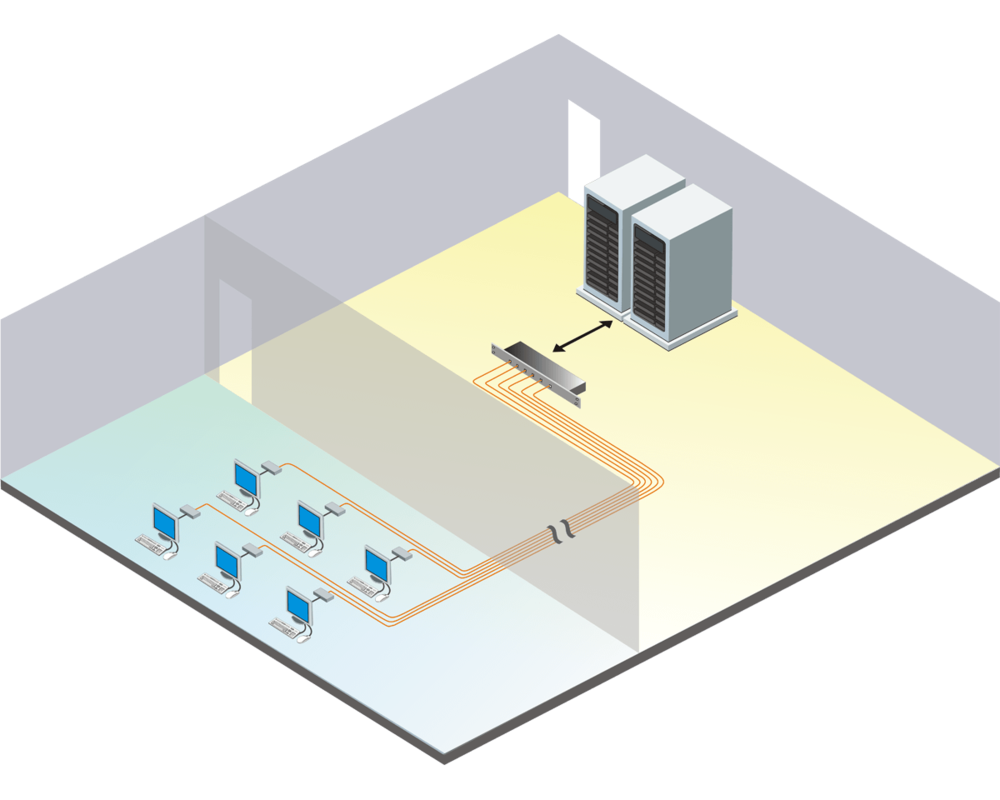

APPLICATION

PART NUMBERS

Product Part Number	Description
Orion XC Switch — CATX PORTS
OXS-XC008-TP	Orion XC 8 port matrix switch, CATx, with IEC power and redundant +5V power jack, 1U
OXS-XC016-TP	Orion XC 16 port matrix switch, redundant PSU, CATx, 1U
OXS-XC032-TP	Orion XC 32 port matrix switch, redundant PSU, CATx, 1U
OXS-XC048-TP	Orion XC 48 port matrix switch, redundant PSU, CATx, 1U
OXS-XC064-TP	Orion XC 64 port matrix switch, redundant PSU, CATx, 2U
OXS-XC080-TP	Orion XC 80 port matrix switch, redundant PSU, CATx, 2U
Orion XC Switch — FIBER PORTS
OXS-XC008-FS	Orion XC 8 port matrix switch, 1G Fiber SM, with IEC power and redundant +5V power jack, 1U
OXS-XC016-FS	Orion XC 16 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC032-FS	Orion XC 32 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC048-FS	Orion XC 48 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC064-FS	Orion XC 64 port matrix switch, redundant PSU, 1G Fiber SM, 2U
OXS-XC080-FS	Orion XC 80 port matrix switch, redundant PSU, 1G Fiber SM, 2U
OXS-XC008-F3	Orion XC 8 port matrix switch, 2.5G Fiber SM, with IEC power and redundant +5V power jack, 1U
OXS-XC016-F3	Orion XC 16 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC032-F3	Orion XC 32 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC048-F3	Orion XC 48 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC064-F3	Orion XC 64 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U
OXS-XC080-F3	Orion XC 80 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U
Orion XC Switch — UNIVERSAL PORTS
OXS-XC008-UN	Orion XC 8 port matrix switch, Universal Ports, with IEC power and redundant +5V power jack, 1U
OXS-XC016-UN	Orion XC 16 port matrix switch, redundant PSU, Universal Ports, 1U
OXS-XC032-UN	Orion XC 32 port matrix switch, redundant PSU, Universal Ports, 1U
OXS-XC048-UN	Orion XC 48 port matrix switch, redundant PSU, Universal Ports, 1U
Orion XC Switch — MIXED CATX + FIBER PORTS
OXS-XC48TP16FS	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 1G Fiber SM, 2U
OXS-XC48TP32FS	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 1G Fiber SM, 2U
OXS-XC48TP16F3	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 2.5G Fiber SM, 2U
OXS-XC48TP32F3	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 2.5G Fiber SM, 2U
Orion XC Switch — MIXED CATX + UNIVERSAL PORTS
OXS-XC48TP16UN	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x Universal Ports, 2U
OXS-XC48TP32UN	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x Universal Ports, 2U
Orion XC Switch — MIXED FIBER + UNIVERSAL PORTS
OXS-XC48FS16UN	Orion XC 64 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 16 x Universal Ports, 2U
OXS-XC48FS32UN	Orion XC 80 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 32 x Universal Ports, 2U
Orion XC Switch— CARDS for insertion into 6-bay or 21-bay Orion XTender chassis
OXS-XC008-TP/IRK	Orion XC 8 ports (card version), CATx
OXS-XC008-FS/IRK	Orion XC 8 ports (card version), 1G Fiber SM
OXS-XC008-F3/IRK	Orion XC 8 ports (card version), 2.5G Fiber SM
OXS-XC008-UN/IRK	Orion XC 8 ports (card version), Universal Ports
Orion X Receivers – CATx
OR2-SRDTXUD1D	DVI-D, USB HID
OR2-SRDTXTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDTXUS1V	DVI-I (VGA, no scaling), USB HID
OR2-SRDTXTD1V	DVI-I (VGA, with scaling), USB HID
OR2-SRDTXUH1H	HDMI, USB HID
OR2-SRDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OR4-SRDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Receivers – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber)
OR2-SRDFSUD1D	DVI-D, USB HID
OR2-SRDFSTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Transmitters – CATx
OT2-SLDTXUD1D	DVI-D, USB HID
OT2-SLDTXUS1V	DVI-I (VGA, no scaling), USB HID
OT2-SLDTXUD1V	DVI-I (VGA, with scaling), USB HID
OT4-SLDTXTD1V	DVI-I (VGA, with scaling), USB USB 2.0, HID
OT2-SLDTXTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDTXTD1V	DVI-I (VGA), USB USB 2.0, HID
OT2-SLDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDTXUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD1V/AUD	DVI-I (VGA), USB USB 2.0, HID, Audio, Serial
Orion X Transmitters – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber)
OT2-SLDFSUD1D	DVI-D, USB HID
OT2-SLDFSUD1V	DVI-I (VGA), USB HID
OT2-SLDFSTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDFSTD1V	DVI-I (VGA), USB HID, USB 2.0
OT2-SLDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDFSUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDFSTD1V/AUD	DVI-I (VGA), USB HID, USB 2.0, Audio, Serial
Transmitters and receivers are partial list, see Orion Xtender data sheet for full information
