VideoSplitter VGA
문의
VGA Splitter
• 1-2 In to 2-16 Out
• 1-2 In to 2-16 Out
FEATURES
- 1개 또는 2개의 CPU에서 다중 모니터 구동
- 최대 1920x1200의 비디오 해상도
- 2, 4, 8 또는 16 모니터를 구동할 수 있는 모델
- 더 많은 출력을 얻기 위해 캐스케이드 연결 가능

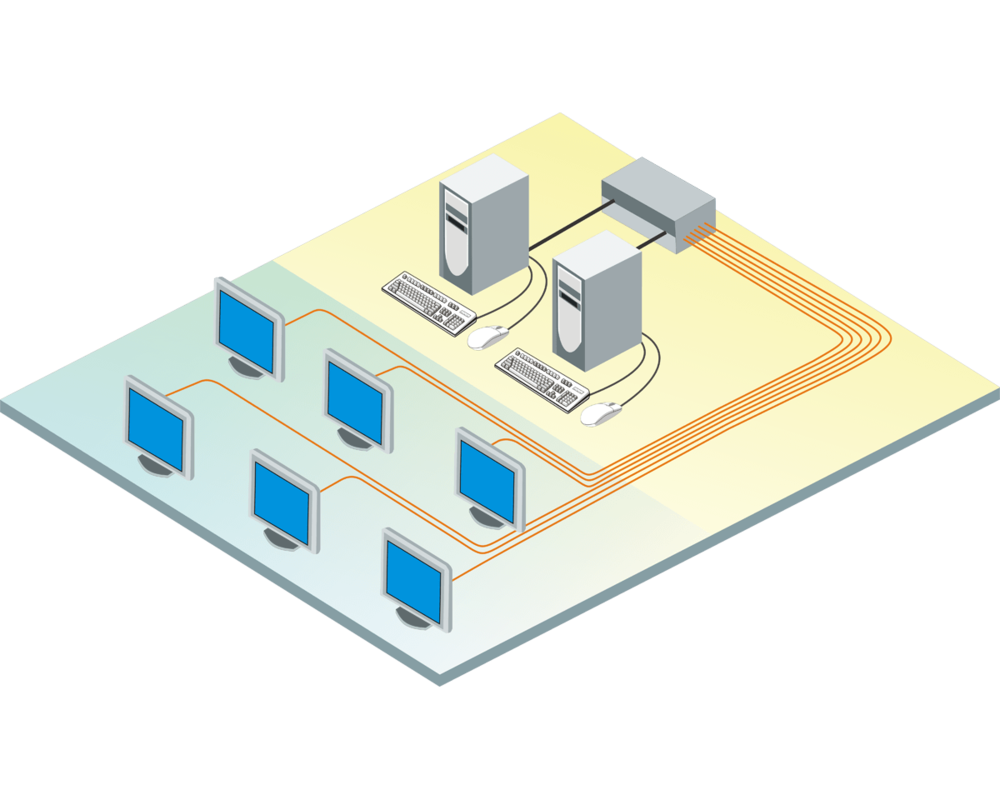

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| Video Splitter - VGA: 1 In to Multiple Out, SV-Chassis | |
| VSP-1X2VB | 1 In to 2 Out, HD15M In - HD15F Out |
| VSP-1X4VB | 1 In to 4 Out, HD15M In - HD15F Out |
| VSP-1X8VB | 1 In to 8 Out, HD15M In - HD15F Out |
| VSP-1X16V | 1 In to 8 Out, HD15M In - HD15F Out |
| Video Splitter - VGA: 2 In to Multiple Out, SV-Chassis | |
| VSP-2X2VB | 2 In to 2 Out, HD15M In - HD15F Out |
| VSP-2X4VB | 2 In to 4 Out, HD15M In - HD15F Out |
| VSP-2X8VB | 2 In to 8 Out, HD15M In - HD15F Out |
| VSP-D1X2VB | Dual Set in single chassis - 1x2 units in 1 SV chassis |
| VSP-D1X4VB | Dual Set in single chassis - 1x4 units in 1 SV chassis |
| VSP-Q1X2VB | Quad Set in single chassis - 1x2 units in 1 SVX chassis |
| VSP-Q1X4VB | Quad Set in single chassis - 1x4 units in 1 SVX chassis |
| VSP-2V2A/SW | 1 to 2 Videos (VGA-HD15) and 1 to 2 Audio, Audio up to 20 ft |
| VSP-2V4A/SW | 1 to 4 Videos (VGA-HD15) and 1 to 2 Audio, Audio up to 20 ft |
| /SW denotes a power adapter for different voltages | |
