CrystalView EX HDMI Multi
문의
Multi-head CATx Extender
• HDMI/USB 2.0/Audio • 330' (100m)
• HDMI/USB 2.0/Audio • 330' (100m)
FEATURES
- 최대 4개의 HDMI 비디오 신호 및 USB 2.0을 최대 330ft (100m) 연장
- 최대 1920x1200의 비압축 비디오 해상도
- 500ma 전원을 공급하는 3개의 원격 고속 USB 2.0 장치 포트
- 최대 40Mbps의 USB 2.0 처리량
- USB 또는 옵션 전용 채널을 통한 오디오 지원
- USB 키보드, 마우스, 프린터, 스캐너, 플래시 드라이브, 오디오 장치, 터치스크린, 게임 컨트롤러 및 많은 USB 장치 사용

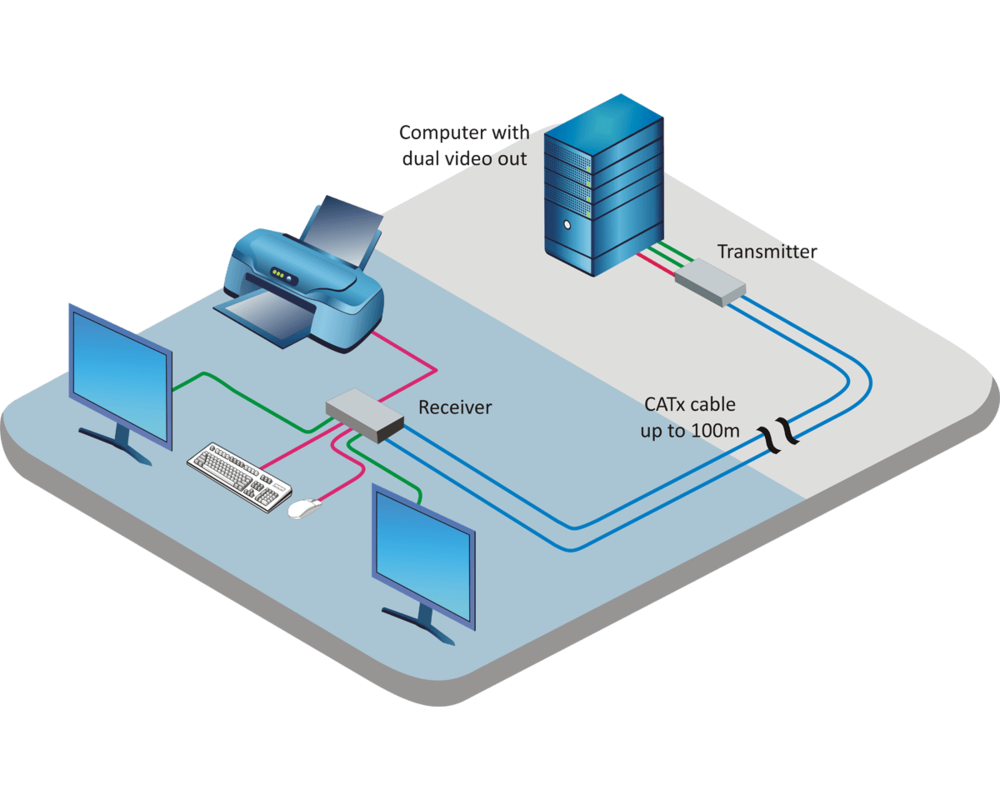

APPLICATION
PART NUMBERS
| Product Part Number | Description |
| MULTI-UNIT KIT — 2, 3, or 4 HDMI+USB (Includes transmitter, receiver, and PSU) | |
| CRK-1DTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit kit (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-1DTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-1DTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-1DTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit kit (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD KIT — one USB and 1, 2, 3, or 4 HDMI (Includes transmitter, receiver, and PSU) | |
| CRK-1DTXT1HM-HD6 | CrystalView EX HDMI multi-head kit (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-1DTXT2HM-HD6 | CrystalView EX HDMI multi-head kit (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-1DTXT2H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-1DTXT3H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-1DTXT4H-HD6 | CrystalView EX HDMI multi-head kit (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY KIT — no USB and 1, 2, 3, or 4 HDMI (Includes transmitter, receiver, and PSU) | |
| CRK-1DTX01HM-HD6 | CrystalView EX HDMI video only kit (mini chassis), 1xHDMI |
| CRK-1DTX02HM-HD6 | CrystalView EX HDMI video only kit (mini chassis), 2xHDMI |
| CRK-1DTX02H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 2xHDMI |
| CRK-1DTX03H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 3xHDMI |
| CRK-1DTX04H-HD6 | CrystalView EX HDMI video only kit (wide chassis), 4xHDMI |
| MULTI-UNIT TRANSMITTER — 2, 3, or 4 HDMI+USB | |
| CRK-SLDTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit transmitter (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SLDTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SLDTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-SLDTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit transmitter (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD TRANSMITTER — one USB and 1, 2, 3, or 4 HDMI | |
| CRK-SLDTXT1HM-HD6 | CrystalView EX HDMI mult-head transmitter (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-SLDTXT2HM-HD6 | CrystalView EX HDMI mult-head transmitter (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-SLDTXT2H-HD6 | CrystalView EX HDMI mult-head transmitter (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-SLDTXT3H-HD6 | CrystalView EX HDMI mult-head transmitter (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-SLDTXT4H-HD6 | CrystalView EX HDMImult-head transmitter (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY TRANSMITTER — no USB and 1, 2, 3, or 4 HDMI | |
| CRK-SLDTX01HM-HD6 | CrystalView EX HDMI video only transmitter (mini chassis), 1xHDMI |
| CRK-SLDTX02HM-HD6 | CrystalView EX HDMI video only transmitter (mini chassis), 2xHDMI |
| CRK-SLDTX02H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 2xHDMI |
| CRK-SLDTX03H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 3xHDMI |
| CRK-SLDTX04H-HD6 | CrystalView EX HDMI video only transmitter (wide chassis), 4xHDMI |
| MULTI-UNIT RECEIVER — 2, 3, or 4 HDMI+USB | |
| CRK-SRDTXT2HM-2T-HD6 | CrystalView EX HDMI mult-unit receiver (mini chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SRDTXT2H-2T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 2xHDMI, 2xUSB2.0 |
| CRK-SRDTXT3H-3T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 3xHDMI, 3xUSB2.0 |
| CRK-SRDTXT4H-4T-HD6 | CrystalView EX HDMI mult-unit receiver (wide chassis), 4xHDMI, 4xUSB2.0 |
| MULTI-HEAD RECEIVER — one USB and 1, 2, 3, or 4 HDMI | |
| CRK-SRDTXT1HM-HD6 | CrystalView EX HDMI mult-head receiver (mini chassis), 1xHDMI, 1xUSB2.0 |
| CRK-SRDTXT2HM-HD6 | CrystalView EX HDMI mult-head receiver (mini chassis), 2xHDMI, 1xUSB2.0 |
| CRK-SRDTXT2H-HD6 | CrystalView EX HDMI mult-head receiver (wide chassis),2xHDMI, 1xUSB2.0 |
| CRK-SRDTXT3H-HD6 | CrystalView EX HDMI mult-head receiver (wide chassis),3xHDMI, 1xUSB2.0 |
| CRK-SRDTXT4H-HD6 | CrystalView EX HDMImult-head receiver (wide chassis), 4xHDMI, 1xUSB2.0 |
| VIDEO-ONLY RECEIVER — no USB and 1, 2, 3, or 4 HDMI | |
| CRK-SRDTX01HM-HD6 | CrystalView EX HDMI video only receiver (mini chassis), 1xHDMI |
| CRK-SRDTX02HM-HD6 | CrystalView EX HDMI video only receiver (mini chassis), 2xHDMI |
| CRK-SRDTX02H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 2xHDMI |
| CRK-SRDTX03H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 3xHDMI |
| CRK-SRDTX04H-HD6 | CrystalView EX HDMI video only receiver (wide chassis), 4xHDMI |
| Options (options fitted on TX and RX units) | |
| /A2 | Bi-Directional Audio |
| /S | Serial RS232 |
| /AS | Bi-Directional Audio + Serial |
| Accessories | |
| CAB-HDMIMMnnn | HDMI male to male cable, nnn = length |
| CAB-USBABnnn | USB type A/B cable, nnn=length |
| RM-UM19 | Rackmount kit for mini chassis |
| RM-UB19 | Rackmount kit for wide chassis |
| TFR-05D400FSUB-1.7F | Replacement power supply for multi transmitter or receiver |
